Same model may have multiple batches, images only for reference.

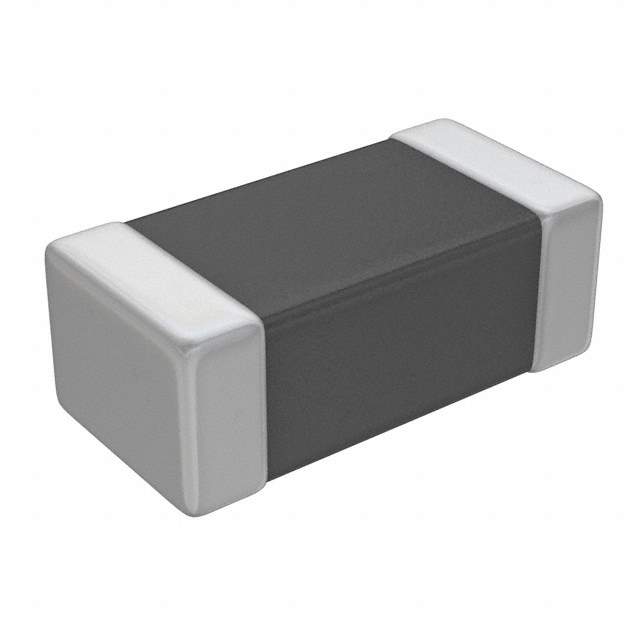

MMZ1608D220CTAH0 Real Image
Same model may have multiple batches, images only for reference.

MMZ1608D220CTAH0

Part No MMZ1608D220CTAH0
Manufacturer TDK Corporation
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 22 OHM 0603 1LN
Datasheet
MMZ1608D220CTAH0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 22 Ohm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 200 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.030" (0.75mm)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Win Source Part Number 1078532-MMZ1608D220CTAH0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MMZ1608D220CTAH0 CAD Model

Description

The TDK Corporation Signal Line Filter is a surface-mount device that is designed to remove electromagnetic interference from signal lines.

  • Current Rating: 500mA
  • Mounting: SMD (SMT)
  • Height: 0.030 inches (0.75mm)
  • Number of Lines: One
  • Impedance: 22 Ohm @ 100MHz
  • DC Resistance (DCR) (Max): 200 mOhm
  • Application: Signal Lines
  • Status: Active
  • Temperature Range: -55°C to 125°C
  • Dimensions: 0.063 inches long by 0.031 inches wide (1.60mm x 0.80mm)
