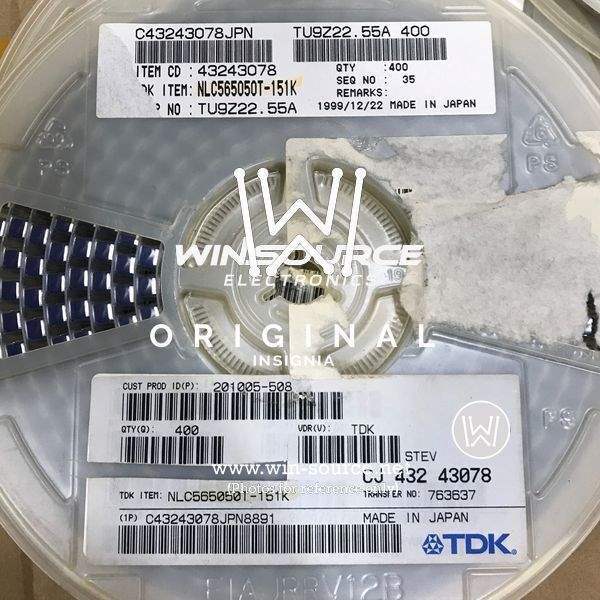

The TDK NLC565050T-151K is a wire-wound inductor designed for various electronic applications, particularly in power supply circuits and high-frequency applications. This inductor features a small size and high reliability, making it suitable for use in compact electronic devices and modules. It is manufactured using TDK's advanced materials and winding technology to achieve high performance and stability.

Applications

• Power supply circuits
• DC-DC converters
• Noise filtering
• RF circuits
• Impedance matching
• Wireless communication devices

Features

• Wire-Wound Inductor: Provides high Q factor and stable inductance.
• Small Size: Allows for high-density circuit designs.
• High Reliability: Ensures stable operation in demanding environments.
• Surface Mount Package: Facilitates automated assembly.
• RoHS Compliant: Meets Restriction of Hazardous Substances directives.

Benefits

• Improved Circuit Performance: High Q factor minimizes losses and enhances circuit performance.
• Compact Design: Small size allows for high-density circuit designs.
• Stable Operation: Reliable performance in diverse environments.
• Easy Assembly: Surface mount package facilitates automated assembly and reduces manufacturing costs.

The TDK NLC565050T-151K inductor is a reliable and high-performance component for various electronic applications. Its small size, high Q factor, and stable inductance make it an excellent choice for power supply circuits, DC-DC converters, and other high-frequency applications. The surface-mount package allows for space-saving designs and automated assembly, contributing to cost-effectiveness.

Technical Specifications:

Inductance: 150nH

Tolerance: ±10%

Self-Resonant Frequency: Depends on the specific application

Operating Temperature Range: -40°C to +85°C
