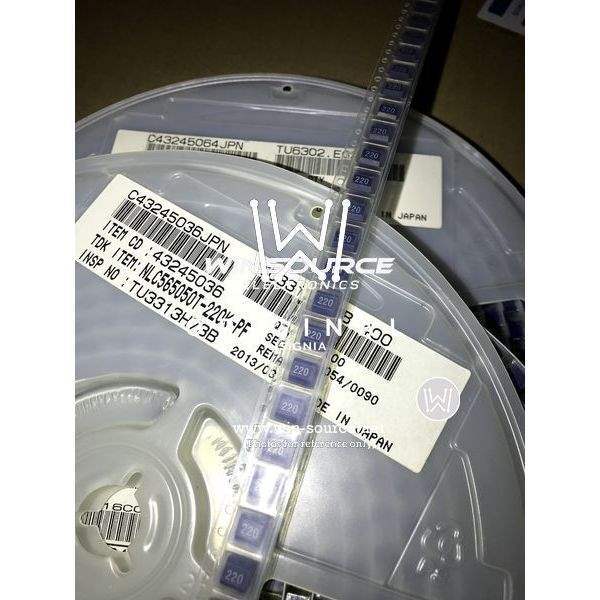

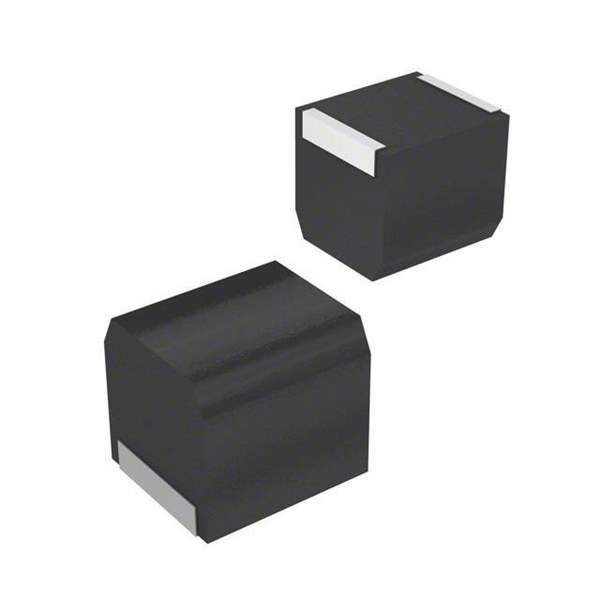

NLC565050T-220K-PF TDK Corporation NLC565050T-220K-PF label picture NLC565050T-220K-PF real image
Same model may have multiple batches, images only for reference.

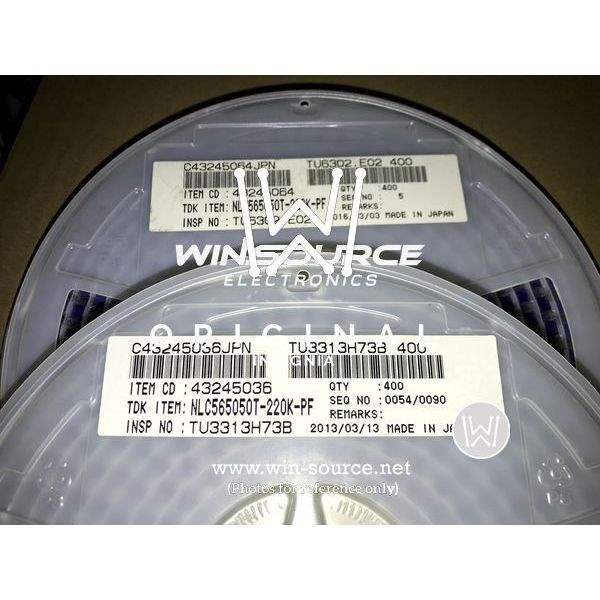

NLC565050T-220K-PF TDK Corporation NLC565050T-220K-PF label picture NLC565050T-220K-PF real image
NLC565050T-220K-PF TDK Corporation NLC565050T-220K-PF label picture NLC565050T-220K-PF real image
Same model may have multiple batches, images only for reference.

NLC565050T-220K-PF

Part No NLC565050T-220K-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 480MA 430 MOHM
Datasheet
NLC565050T-220K-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 22μH
Tolerance ±10%
Current Rating 480mA
DC Resistance (DCR) 430 mOhm Max
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 099503-NLC565050T-220K-PF
Family Name NLC
Introduction Date June 25, 1999
ECCN EAR99
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NLC565050T-220K-PF CAD Model

Description

The TDK Corporation NLC565050T-220K-PF is a wirewound inductor that offers an inductance of 22μH and a current rating of 480mA.

  • Inductance: 22μH
  • Current Rating: 480mA
  • Height: 0.197" (5.00mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±10%
  • Q @ Freq: 10 @ 2.52MHz
  • Series: NLC
  • Self-Resonant Frequency: 13MHz
  • Test Frequency: 2.52MHz
  • DC Resistance (DCR): 430 mOhm Max
  • Popularity: high
  • Package: reel - TR
  • Status: obsolete (EOL)
  • Alternative Parts: ASPI-4D22-220N, ASPI-5D18-220N, and ASPI-5D28-220N-T
