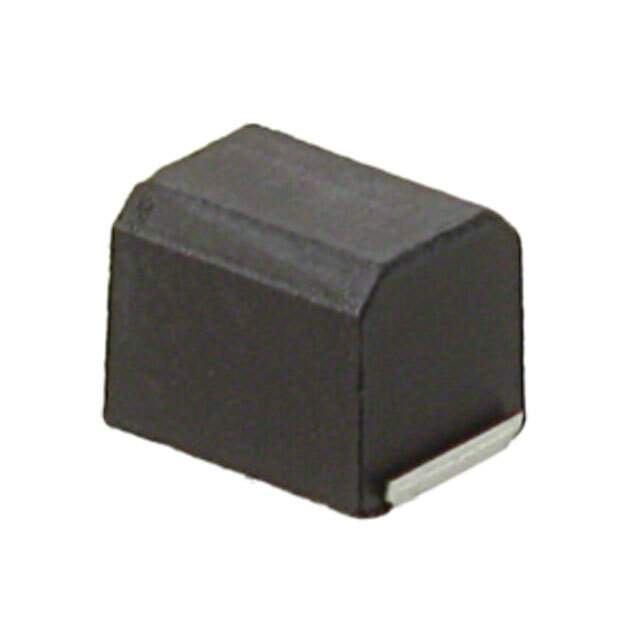

The NLFC453232T-1R0M is a Wire Wound Ferrite Chip Inductor manufactured by TDK Corporation. It's designed for use in power supply circuits, high-frequency circuits, and other applications where a small, high-performance inductor is required.

Applications

• Power Supply Circuits: Used as filter inductors in DC-DC converters and other power supply applications.
• High-Frequency Circuits: Used in RF circuits, impedance matching networks, and filters.
• Noise Filtering: Suppresses noise in signal lines and power lines.
• Wireless Communication Devices: Used in smartphones, tablets, and other wireless devices for impedance matching and filtering.
• Audio Equipment: Used in audio amplifiers and filters to improve sound quality.

Features

• Small Size: Compact 4.5 x 3.2 x 3.2 mm package size for space-constrained applications.
• Wire Wound Construction: Provides high inductance and low DC resistance.
• Ferrite Core: Offers high permeability and low core loss at high frequencies.
• High Current Capability: Can handle relatively high currents without saturating.
• Excellent Temperature Stability: Maintains stable performance over a wide temperature range.

Benefits

• Space Saving: Small size allows for integration into compact electronic devices.
• High Performance: Provides high inductance and low DC resistance for efficient power transfer.
• Noise Suppression: Effectively suppresses noise in signal lines and power lines.
• Stable Performance: Maintains stable performance over a wide temperature range.
• Reliable Operation: Designed for reliable operation in various environments.

Technical Specifications

The NLFC453232T-1R0M has an inductance of 1.0 μH. The DC resistance (DCR) is typically 0.14 Ohms. The rated current is approximately 2.4A. The self-resonant frequency (SRF) is typically around 80 MHz. The operating temperature range is typically between -40°C and +125°C. The component is RoHS compliant. This inductor is suitable for reflow soldering. The core material is a high-performance ferrite material.
