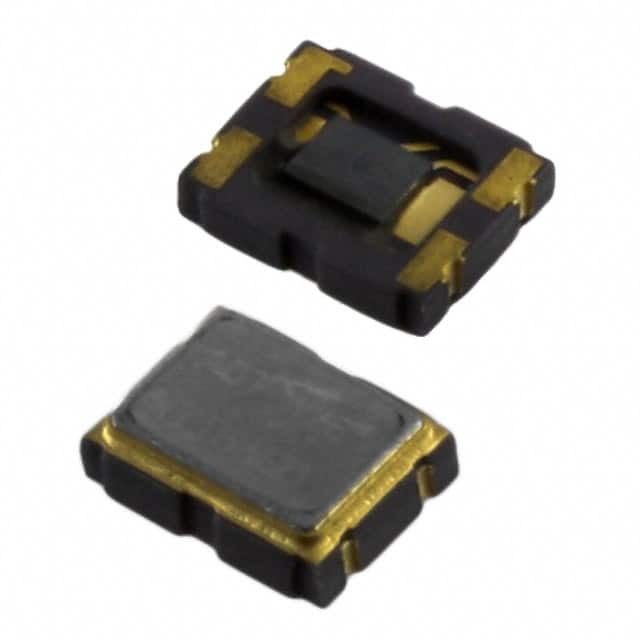

Same model may have multiple batches, images only for reference.
7Q-26.000MBN-T
Same model may have multiple batches, images only for reference.

7Q-26.000MBN-T

Part No 7Q-26.000MBN-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC TCXO 26.0000MHZ SNWV
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr TXC CORPORATION
Series 7Q
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type TCXO
Frequency 26 MHz
Output Clipped Sine Wave
Voltage - Supply 3.3V
Frequency Stability ±2ppm
Temperature Range - Operating -30°C ~ 85°C
Current - Supply (Max) 2mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 858289-7Q-26.000MBN-T
Ultra Librarian 3D Model Ultra Librarian 7Q-26.000MBN-T CAD Model

Description

The 858289-7Q-26.000MBN-T is a TCXO (Temperature Compensated Crystal Oscillator) with a frequency of 26 MHz.

  • Frequency: 26 MHz
  • Series: 7Q
  • Packaging: Tape & Reel
  • Size / Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height - Seated (Max): 0.043" (1.10mm)
  • Frequency Stability: ±2ppm
  • Voltage - Supply: 3.3V
  • Supply Current (Max): 2mA
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, no lead
  • Manufacturer: TXC CORPORATION
  • Product Status: Obsolete
