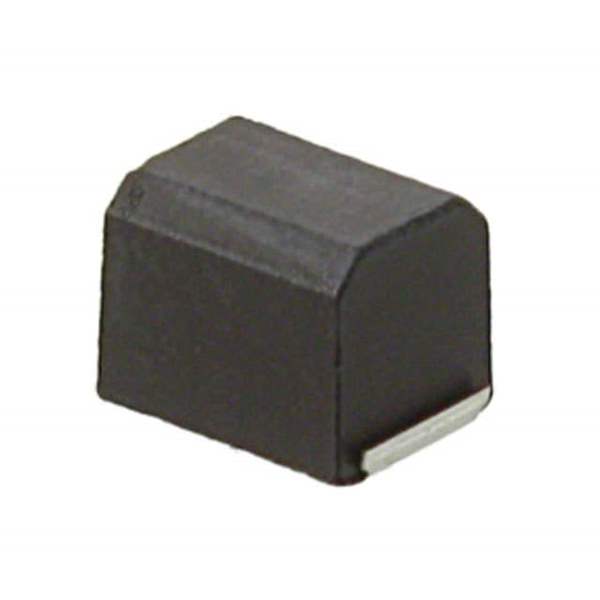

NLFC453232T-220K-PF TDK Corporation
Same model may have multiple batches, images only for reference.

NLFC453232T-220K-PF

Part No NLFC453232T-220K-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 170MA 460 MOHM
Datasheet
NLFC453232T-220K-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 22μH
Tolerance ±10%
Current Rating 170mA
DC Resistance (DCR) 460 mOhm
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 18MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 2.52MHz
Mounting SMD (SMT)
Case / Package 1812
Height - Seated (Max) 0.134" (3.40mm)
Win Source Part Number 025554-NLFC453232T-220K-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NLFC453232T-220K-PF CAD Model

Description

The TDK Corporation NLFC453232T-220K-PF is a wirewound inductor with a current rating of 170mA and an inductance of 22μH.

  • Current Rating: 170mA
  • Inductance: 22μH
  • Height: 0.134" (3.40mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±10%
  • Q @ Freq: 10 @ 2.52MHz
  • Self-Resonant Frequency: 18MHz
  • Test Frequency: 2.52MHz
  • DC Resistance (DCR): 460 mOhm
  • Temperature Range: -40°C to 105°C
  • Package: 1812
  • Popularity: Medium
