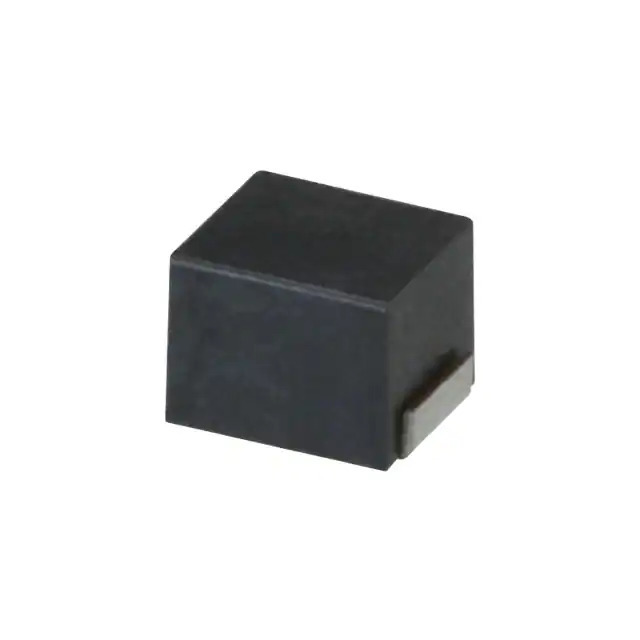

NLV25T-R10J-EF TDK Corporation
Same model may have multiple batches, images only for reference.

NLV25T-R10J-EF

Part No NLV25T-R10J-EF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 100NH 280MA 800MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series NLV-EF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 nH
Tolerance ±5%
Current Rating (Amps) 280 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 800mOhm Max
Q @ Freq 20 @ 25.2MHz
Frequency - Self Resonant 800MHz
Ratings -
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.075" (1.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370042-NLV25T-R10J-EF
Ultra Librarian 3D Model Ultra Librarian NLV25T-R10J-EF CAD Model

Description

The 1370042-NLV25T-R10J-EF is a drum core, wirewound fixed inductor from TDK Corporation's NLV-EF series.

  • Mounting Type: Surface Mount
  • Package: 1008 (2520 Metric)
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.075" (1.90mm)
  • Inductance: 100 nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 800mOhm
  • Current Rating: 280 mA
  • Frequency Self-Resonant: 800MHz
  • Shielding: Unshielded
  • Material: Ferrite
  • Temperature Range: -40°C to 105°C
  • REACH: Affected
