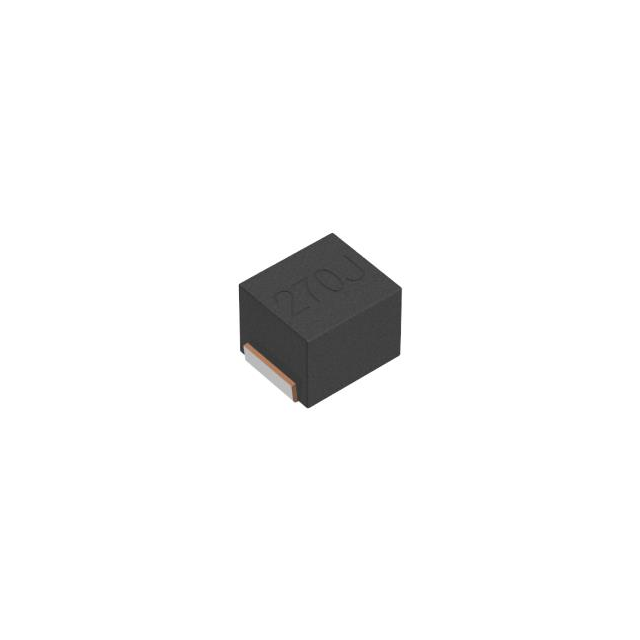

NLV25T-R22J-PFD Real Image
Same model may have multiple batches, images only for reference.

NLV25T-R22J-PFD

Part No NLV25T-R22J-PFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 220NH 430MA 500 MOHM / Inductor General Purpose Chip Molded/Unshielded Wirewound 0.22uH 5% 25.2MHz 30Q-Factor Ferrite 0.43A 0.5Ohm DCR 1008 Automotive T/R
Datasheet
NLV25T-R22J-PFD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series NLV-PFD
Packaging Reel package
Type Wirewound
Material - Core Ferrite
Inductance 220nH
Tolerance ±5%
Current Rating 430mA
Shielding Unshielded
DC Resistance (DCR) 500 mOhm Max
Q @ Freq 30 @ 25.2MHz
Frequency - Self Resonant 450MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 105°C
Test Frequency 25.2MHz
Mounting SMD
Package 1008 (2520 Metric)
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.075" (1.90mm)
Win Source Part Number 790735-NLV25T-R22J-PFD
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Family Name NLV-PFD
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian NLV25T-R22J-PFD CAD Model

Description

The TDK Corporation NLV25T-R22J-PFD is a wirewound inductor.

  • Inductance: 220nH
  • Current Rating: 430mA
  • Tolerance: ±5%
  • Compliance: AEC-Q200
  • Package: 1008 (2520 Metric)
  • Mounting: SMD
  • Operating Temperature Range: -40°C to 105°C
  • Shielding: Unshielded
  • Material: Ferrite
  • DC Resistance (DCR): 500 mOhm Max
  • Self-Resonant Frequency: 450MHz
  • Q: 30 @ 25.2MHz
  • Alternative Parts: NLV25T-R22J-EFD
