Same model may have multiple batches, images only for reference.

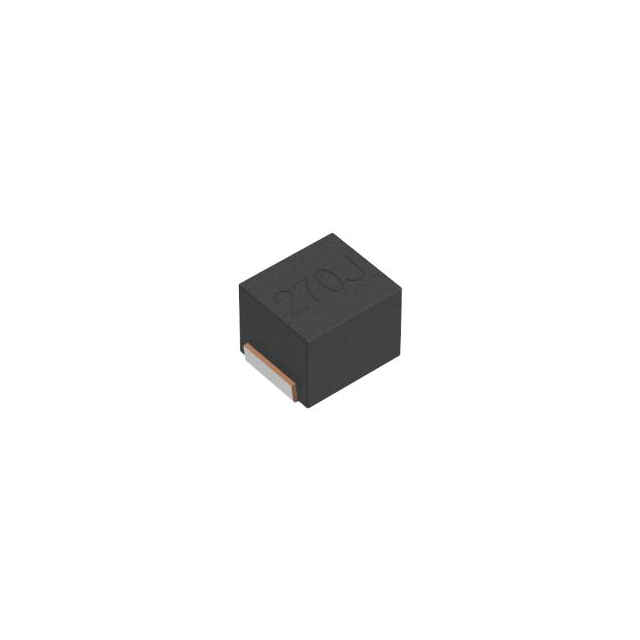

NLV25T-R33J-PFD Real Image
Same model may have multiple batches, images only for reference.

NLV25T-R33J-PFD

Part No NLV25T-R33J-PFD
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 330NH 400MA 600 MOHM
Datasheet
NLV25T-R33J-PFD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 330nH
Tolerance ±5%
Current Rating 400mA
DC Resistance (DCR) 600 mOhm Max
Q @ Freq 30 @ 25.2MHz
Frequency - Self Resonant 400MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C to 105°C
Frequency - Test 25.2MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.075" (1.90mm)
Win Source Part Number 1083197-NLV25T-R33J-PFD
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian NLV25T-R33J-PFD CAD Model

Description

The NLV25T-R33J-PFD is a wirewound inductor manufactured by TDK Corporation.

  • Inductor Type: Wirewound
  • Current Rating: 400mA
  • Inductance: 330nH
  • Inductance Tolerance: ±5%
  • Mounting: Surface Mountable
  • Package/Case Size: 1008 (2520 Metric)
  • Supply and Demand Status: Balanced
  • Quantity per Package: 2k pcs
