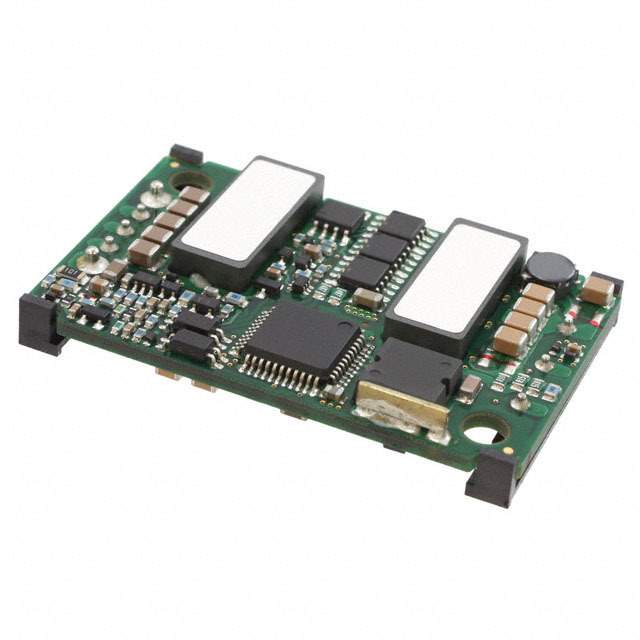

PAQ100S48-1R8 Real Image
Same model may have multiple batches, images only for reference.

PAQ100S48-1R8

Part No PAQ100S48-1R8
Manufacturer TDK Corporation
Catalog Board Mount Modules
Description DC-DC Converters, Power module type, Output: 45W, 1.8V, Isolated type
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Module
Current - Output 1 25 A
Efficiency 84 %
Features OCP, OVP
Height 8.382 mm
Isolation Voltage 1.5 kV
Length 36.83 mm
Max Input Voltage 76 V
Maximum Operating Temperature 85 °C
Max Output Current 25 A
Max Power Dissipation 45 W
Min Input Voltage 36 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Outputs 1
Number of Pins 8
Output Current 25 A
Output Power 45 W
Output Voltage 1.8 V
RoHS Compliant
Voltage - Output 1 1.8 V
Width 57.912 mm
Win Source Part Number 1083896-PAQ100S48-1R8
Categories Board Mount Modules
Manufacturer TDK Corporation
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian PAQ100S48-1R8 CAD Model

Description

The TDK Corporation board mount module is a surface mount module that has an output voltage of 1.8 V.

  • Output Voltage: 1.8 V
  • Length: 36.83 mm
  • Height: 8.382 mm
  • Width: 57.912 mm
  • Number of Pins: 8
  • Number of Outputs: 1
  • Isolation Voltage: 1.5 kV
  • Maximum Input Voltage: 76 V
  • Features: OCP and OVP
  • Output Power: 45 W
  • Output Current: 25 A
  • Efficiency: 84%
  • RoHS Compliance: Yes
  • Maximum Operating Temperature: 85 °C
  • Market Status: Shortage
