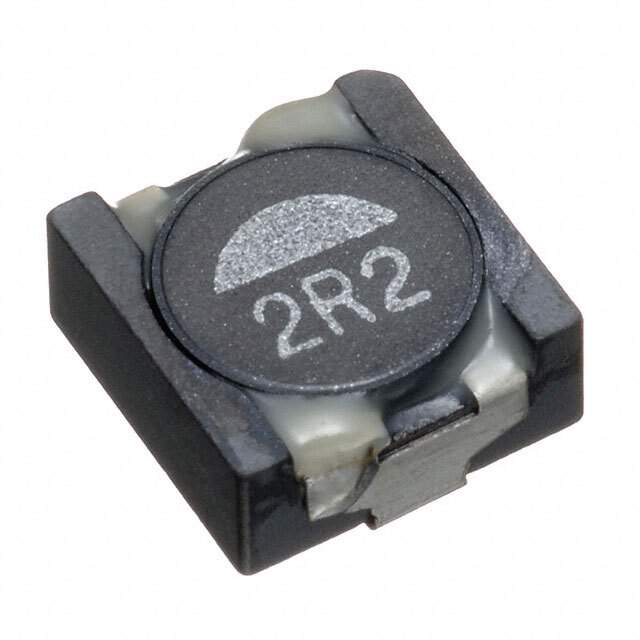

RLF7030T-1R0N6R4 Real Image
Same model may have multiple batches, images only for reference.

RLF7030T-1R0N6R4

Part No RLF7030T-1R0N6R4
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 6.4A 7.3 MOHM SMD
Datasheet
RLF7030T-1R0N6R4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating 6.4A
Current - Saturation 7.9A
DC Resistance (DCR) 8.76 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.126" (3.20mm)
Win Source Part Number 027437-RLF7030T-1R0N6R4
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RLF7030T-1R0N6R4 CAD Model

Description

The TDK Corporation RLF7030T-1R0N6R4 wirewound inductor is a high-quality component that is widely used in a variety of applications.

  • Current Rating: 6.4A
  • Inductance: 1μH
  • Tolerance: ±30%
  • Material: ferrite
  • Maximum Height: 0.126" (3.20mm) when seated
  • Supply: on a reel
  • Component Type: SMD (SMT)
  • DC Resistance (DCR): 8.76 mOhm max
  • Current Saturation: 7.9A
  • Temperature Range: -40°C to 125°C
