Same model may have multiple batches, images only for reference.

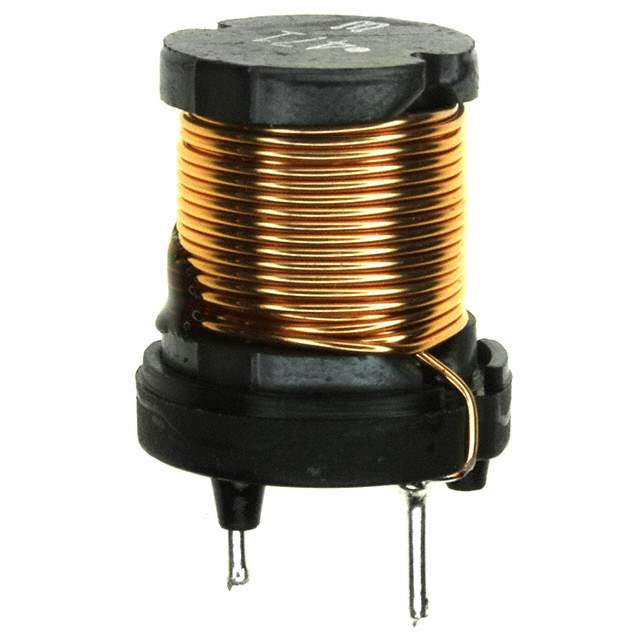

SL1720-471K1R3-PF Real Image
Same model may have multiple batches, images only for reference.

SL1720-471K1R3-PF

Part No SL1720-471K1R3-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Datasheet
SL1720-471K1R3-PF Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SL
Package Tray
Product Status Obsolete
Type Wirewound
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 1.7A
Shielding Unshielded
DC Resistance (DCR) 270mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Dimension 0.665" Dia (16.90mm)
Height - Seated (Max) 0.827" (21.00mm)
Other Names 445-3806,SL1720471K1R3PF,-SL1720-471K1R3
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272690-SL1720-471K1R3-PF
Ultra Librarian 3D Model Ultra Librarian SL1720-471K1R3-PF CAD Model

Description

The TDK Corporation SL series wirewound inductor, with an inductance of 470 µH and ±10% tolerance, is designed for use in through-hole mounting applications.

  • Series: SL series
  • Type: Wirewound inductor
  • Inductance: 470 µH
  • Tolerance: ±10%
  • Mounting: Through-hole
  • Shielded: Unshielded
  • DC Resistance: 270mOhm max
  • Current Rating: 1.3A
  • Maximum Height: 0.827" (21.00mm)
  • Package: Radial, vertical cylinder (open)
  • Operating Temperature Range: -40°C ~ 85°C
