Same model may have multiple batches, images only for reference.

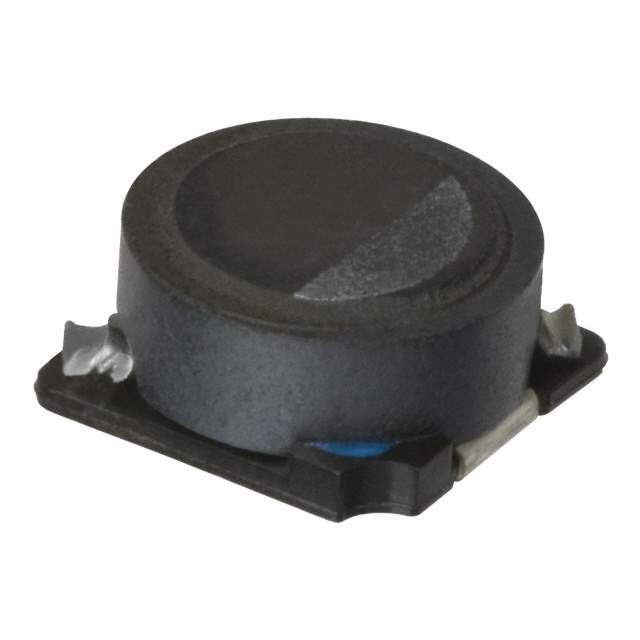

SLF6028T-220MR77-PF Real Image
Same model may have multiple batches, images only for reference.

SLF6028T-220MR77-PF

Part No SLF6028T-220MR77-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 1.3A 0.1248Ohm DCR 2424 T/R / FIXED IND 22UH 770MA 124.8 MOHM
Datasheet
SLF6028T-220MR77-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 1.3A
Current - Saturation 770mA
DC Resistance (DCR) 124.8 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 028873-SLF6028T-220MR77-PF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Family Name SLF
Introduction Date August 03, 1999
ECCN EAR99
Country of Origin China, Philippines
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SLF6028T-220MR77-PF CAD Model

Description

The TDK Corporation SLF6028T-220MR77-PF is a wirewound type of inductor with a current rating of 1.3A and an inductance of 22μH.

  • Current Rating: 1.3A
  • Inductance: 22μH
  • Height-Seated Maximum: 0.118 inches or 3.00mm
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Material: Ferrite core
  • Current Saturation: 770mA
  • DC Resistance: 124.8 mOhm Max
  • Operating Temperature Range: -40°C to 105°C
  • Status: Active
  • Estimated EOL date: 2027
  • Package: 1k pcs
