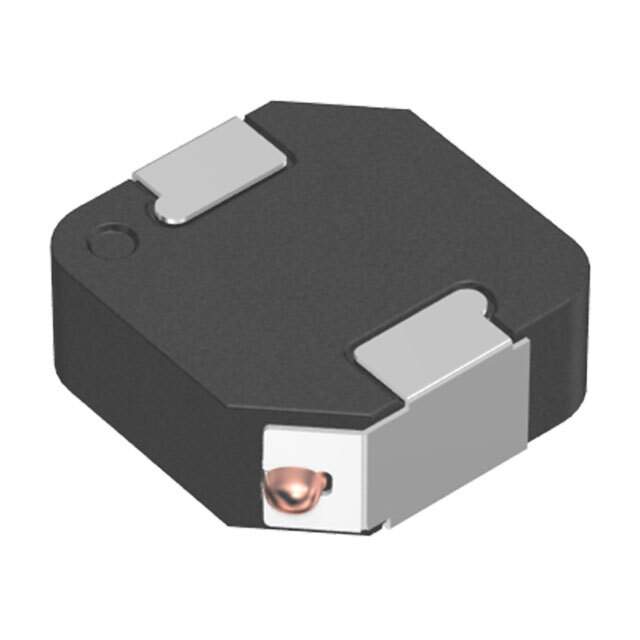

SPM10040T-220M-HZ Real Image
Same model may have multiple batches, images only for reference.

SPM10040T-220M-HZ

Part No SPM10040T-220M-HZ
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 5.2A 78.94MOHM SM / 22 µH Shielded Drum Core, Wirewound Inductor 5.2 A 78.94mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-HZ
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 5.2 A
Current - Saturation (Isat) 3.4A
Shielding Shielded
DC Resistance (DCR) 78.94mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.421" L x 0.394" W (10.70mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 445-180242-6,445-180242-2,445-180242-1
Standard Package 500
Win Source Part Number 1015579-SPM10040T-220M-HZ
Ultra Librarian 3D Model Ultra Librarian SPM10040T-220M-HZ CAD Model

Description

The TDK Corporation SPM10040T-220M-HZ is a fixed inductor from the SPM-HZ series that has a drum core and wirewound type.

  • Series: SPM-HZ
  • Core: drum core
  • Type: wirewound
  • Shielding: shielding feature
  • Operating Temperature: -40°C to 125°C
  • Inductance: 22μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 78.94mOhm Max
  • Current Rating: 5.2A
  • Packaging: tape and reel
  • Height: 0.157" (4.00mm) when seated
  • Standard Package: 500
  • Mounting: SMD (SMT)
  • REACH: unaffected by REACH
  • HTSUS: 8504.50.4000.
