Same model may have multiple batches, images only for reference.

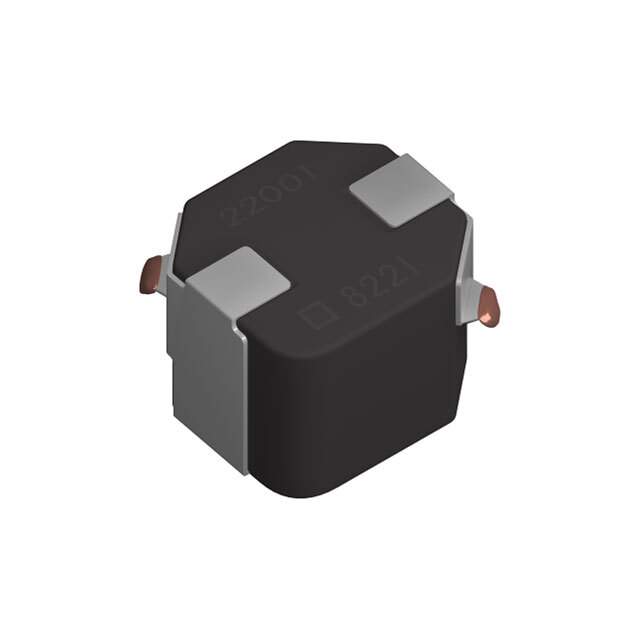

SPM10065VT-100M-D Real Image
Same model may have multiple batches, images only for reference.

SPM10065VT-100M-D

Part No SPM10065VT-100M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 8.1 A
Current - Saturation (Isat) 15.2A
Shielding Shielded
DC Resistance (DCR) 21mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.413" L x 0.394" W (10.50mm x 10.00mm)
Height - Seated (Max) 0.256" (6.50mm)
Other Names 445-SPM10065VT-100M-DCT,445-SPM10065VT-100M-DTR,445-SPM10065VT-100M-DDKR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272505-SPM10065VT-100M-D
Ultra Librarian 3D Model Ultra Librarian SPM10065VT-100M-D CAD Model

Description

The SPM10065VT-100M-D is a fixed inductor manufactured by TDK Corporation.

  • Package Type: Tape and reel
  • Shielded: Yes
  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 21mOhm
  • Current Rating: 8.1 A
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
