Same model may have multiple batches, images only for reference.

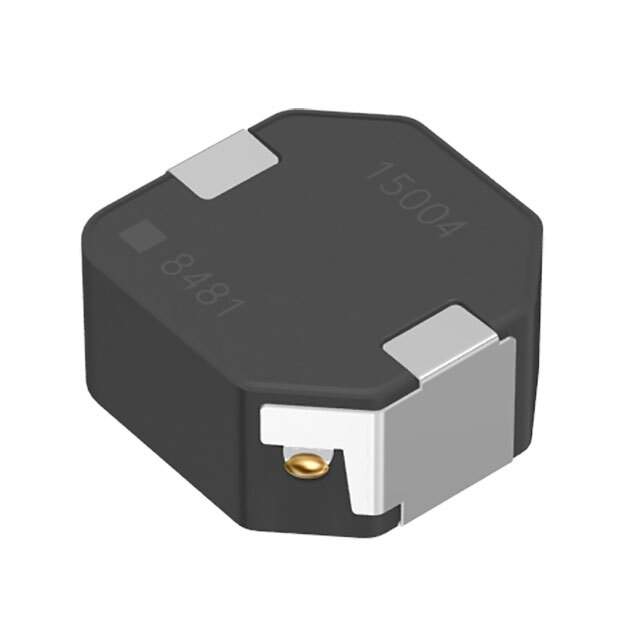

SPM12565VT-150M-D Real Image
Same model may have multiple batches, images only for reference.

SPM12565VT-150M-D

Part No SPM12565VT-150M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 8.5 A
Current - Saturation (Isat) 10.6A
Shielding Shielded
DC Resistance (DCR) 20.9mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" L x 0.492" W (13.00mm x 12.50mm)
Height - Seated (Max) 0.256" (6.50mm)
Other Names 445-181901-6,445-181901-2,445-181901-1
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272504-SPM12565VT-150M-D
Ultra Librarian 3D Model Ultra Librarian SPM12565VT-150M-D CAD Model

Description

The SPM12565VT-150M-D from TDK Corporation is an electronic component that belongs to the fixed inductors category.

  • Type: Drum core, wirewound, shielded
  • Manufacturer: TDK Corporation
  • Win Source Part Number: 1272504-SPM12565VT-150M-D
  • Current Rating: 8.5 A
  • AEC-Q200 Rated: Yes
