Same model may have multiple batches, images only for reference.

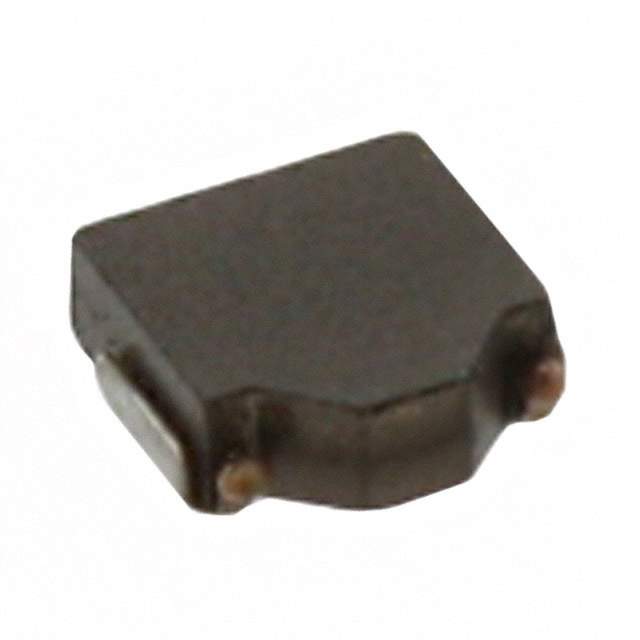

SPM3012T-2R2M Real Image
Same model may have multiple batches, images only for reference.

SPM3012T-2R2M

Part No SPM3012T-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Metal 2.2A 0.11Ohm DCR T/R / FIXED IND 2.2UH 2.2A 115 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal
Inductance 2.2μH
Tolerance ±20%
Current Rating 2.2A
Current - Saturation 2.5A
DC Resistance (DCR) 115 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.047" (1.20mm)
Win Source Part Number 030757-SPM3012T-2R2M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name SPM
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SPM3012T-2R2M CAD Model

Description

TDK Corporation SPM3012T-2R2M is a high-quality wirewound inductor that provides reliable and efficient performance.

  • Packaging: Reel - TR
  • Height-Seated (Max): 0.047" (1.20mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Family Name: SPM
  • Category: Inductor, Coil, Choke
  • DC Resistance (DCR): 115 mOhm Max
  • Temperature Range: -40°C to 125°C
  • Alternative Parts (Cross-Reference): LPS3015-222MTD, 1256AS-H-2R2M, LPS3015-222MSB, and LPS3015-222MLB
  • Introduction Date: May 20, 2002
  • ECCN: EAR99
  • Estimated EOL Date: 2022
  • Halogen-Free Standards: Compliant
  • Supply and Demand: Sufficient
