Same model may have multiple batches, images only for reference.

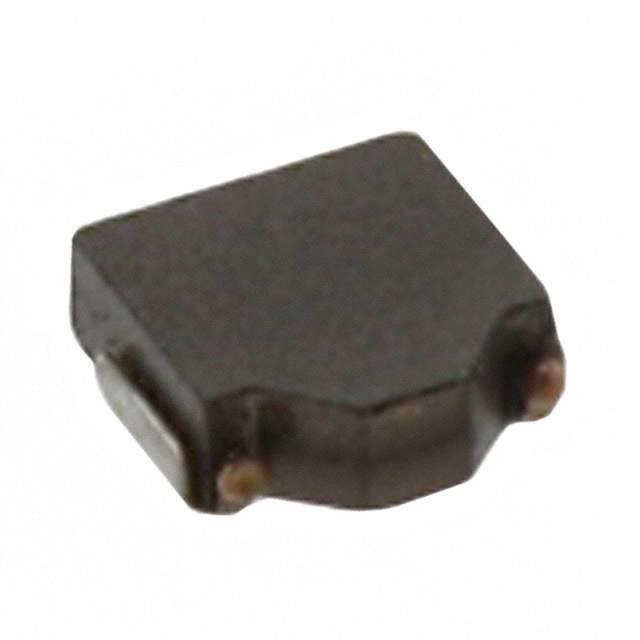

SPM3012T-4R7M Real Image
Same model may have multiple batches, images only for reference.

SPM3012T-4R7M

Part No SPM3012T-4R7M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.3A 270 MOHM / Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Metal 1.3A 0.2668Ohm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series SPM
Packaging Reel package
Type Wirewound
Material - Core Metal
Inductance 4.7μH
Tolerance ±20%
Current Rating 1.3A
Current - Saturation 1.5A
Shielding Shielded
DC Resistance (DCR) 270 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.126" L x 0.118" W (3.20mm x 3.00mm)
Height - Seated (Maximum) 0.051" (1.30mm)
Win Source Part Number 795309-SPM3012T-4R7M
Popularity Medium
Supply and Demand Status Balance
Family Name SPM
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SPM3012T-4R7M CAD Model

Description

The TDK Corporation SPM3012T-4R7M is a wirewound inductor.

  • Series: SPM
  • Shielding: Shielded
  • Inductance: 4.7µH
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 1.3A
  • Tolerance: ±20%
  • DC Resistance (DCR): 270 mOhm Max
  • Dimensions: 0.126" L x 0.118" W (3.20mm x 3.00mm)
  • Height Seated (Maximum): 0.051" (1.30mm)
  • ECCN: EAR99
  • Estimated EOL Date: 2022
  • Compliance: Halogen-free
  • Popularity: Medium
