Same model may have multiple batches, images only for reference.

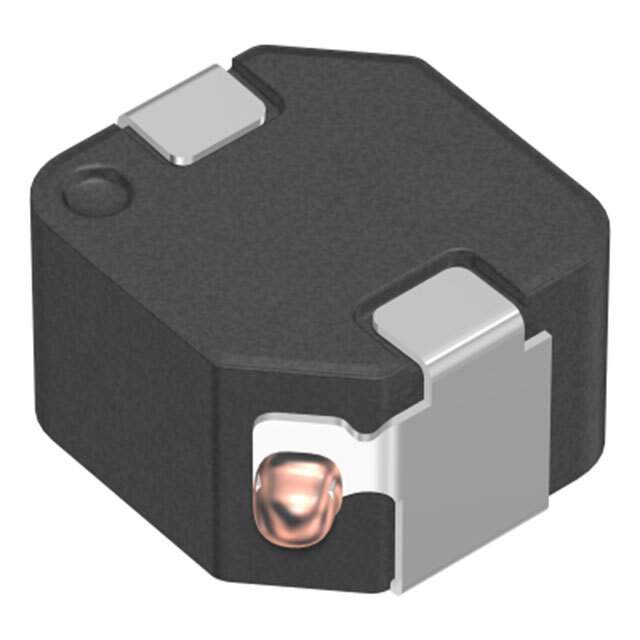

SPM4030T-2R2M-HZ Real Image
Same model may have multiple batches, images only for reference.

SPM4030T-2R2M-HZ

Part No SPM4030T-2R2M-HZ
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.8A 39.6MOHM SM / 2.2 µH Shielded Drum Core, Wirewound Inductor 2.8 A 39.6mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-HZ
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 2.8A
Shielding Shielded
DC Resistance (DCR) 39.6mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.161" L x 0.157" W (4.10mm x 4.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-SPM4030T-2R2M-HZDKR,445-SPM4030T-2R2M-HZTR,445-SPM4030T-2R2M-HZCT
Standard Package 500
Win Source Part Number 1006082-SPM4030T-2R2M-HZ
Ultra Librarian 3D Model Ultra Librarian SPM4030T-2R2M-HZ CAD Model

Description

The SPM4030T-2R2M-HZ inductor is a member of the SPM-HZ series, designed for use in fixed inductors.

  • Series: SPM-HZ
  • Inductance: 2.2 µH
  • Maximum DC Resistance (DCR): 39.6mOhm
  • Package: Nonstandard
  • Mounting: SMD (SMT)
  • Application: Power Supplies and Automotive
