Same model may have multiple batches, images only for reference.

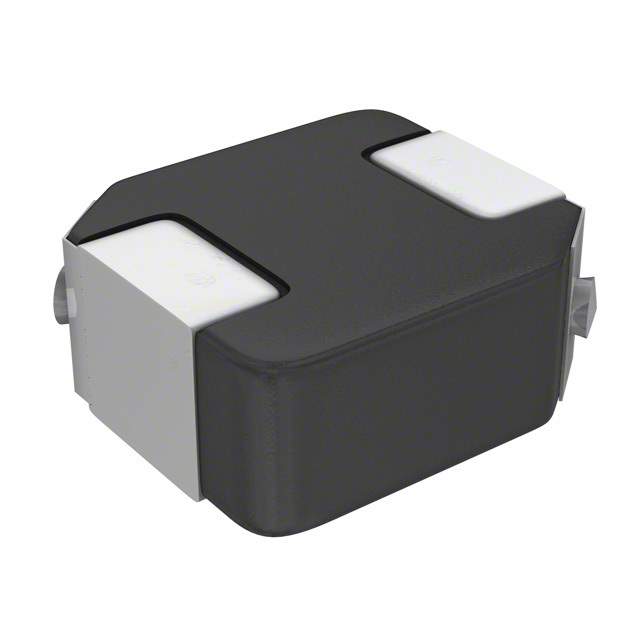

SPM6530T-2R2M Real Image
Same model may have multiple batches, images only for reference.

SPM6530T-2R2M

Part No SPM6530T-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Metal 8.2A 0.0191Ohm DCR T/R / FIXED IND 2.2UH 8.2A 19 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Metal
Inductance 2.2μH
Tolerance ±20%
Current Rating 8.2A
Current - Saturation 8.4A
DC Resistance (DCR) 19 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 030762-SPM6530T-2R2M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name SPM
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian SPM6530T-2R2M CAD Model

Description

This wirewound inductor is manufactured by TDK Corporation and is part of the SPM family.

  • Current Rating: 8.2A
  • Inductance: 2.2μH
  • Height: 0.118" (3.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Metal
  • Current Saturation: 8.4A
  • DC Resistance (DCR): 19 mOhm Max
  • Status: Active
  • Temperature Range: -40°C to 125°C
  • Halogen-Free: Yes
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Sufficient
