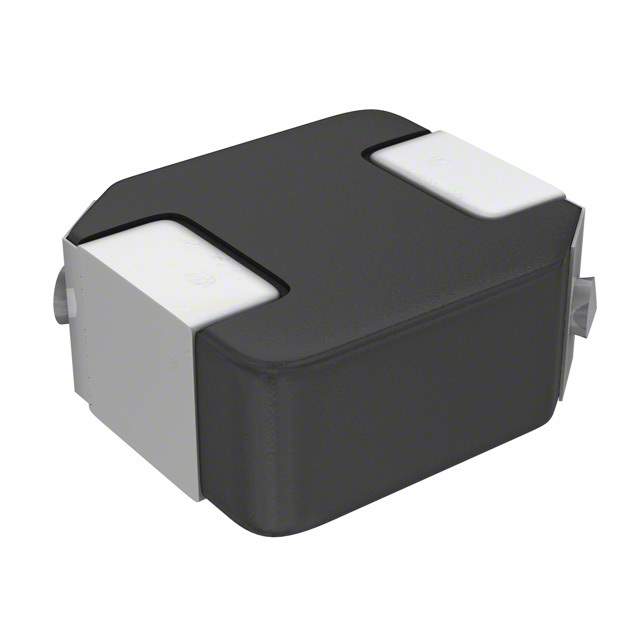

Same model may have multiple batches, images only for reference.

SPM6530T-3R3M

Name: SPM6530T-3R3M
Brand: TDK Corporation
SKU: 338863
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SPM6530T-3R3M
Manufacturer	TDK Corporation
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 6.8A 29.7 MOHM
Datasheet	SPM6530T-3R3M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	TDK Corporation
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Metal
Inductance	3.3μH
Tolerance	±20%
Current Rating	6.8A
Current - Saturation	7.3A
DC Resistance (DCR)	29.7 mOhm Max
Temperature Range - Operating	-40°C to 125°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.118" (3.00mm)
Win Source Part Number	030763-SPM6530T-3R3M
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Power Management, Industrial, Consumer Electronics, Portable Devices, Communications & Networking, Computers & Computer Peripherals
Ultra Librarian 3D Model	Ultra Librarian SPM6530T-3R3M CAD Model

Alternative Products

Description

The TDK Corporation 030763-SPM6530T-3R3M is a wirewound type inductor with a current rating of 6.8A and an inductance of 3.3μH.

Current Rating: 6.8A
Inductance: 3.3μH
Maximum Seated Height: 0.118" (3.00mm)
Mounting: SMD (SMT)
Tolerance: ±20%
Core Material: Metal
Current Saturation: 7.3A
DC Resistance (DCR): 29.7 mOhm Max
