Same model may have multiple batches, images only for reference.

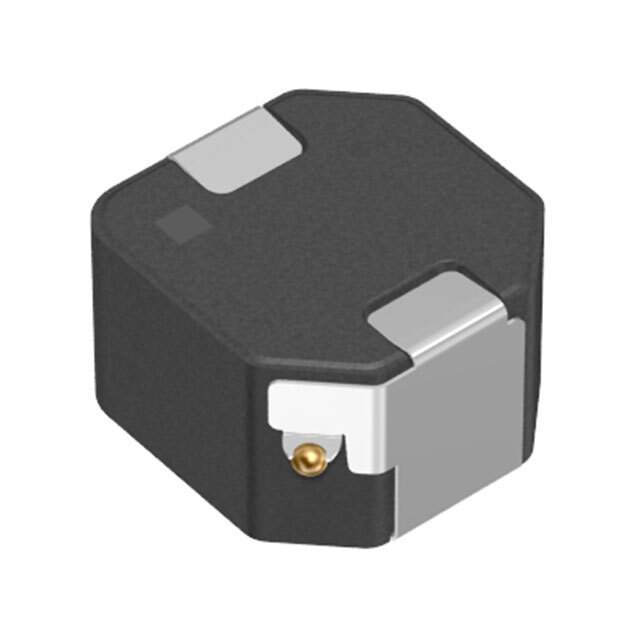

SPM6545VT-330M-D Real Image
Same model may have multiple batches, images only for reference.

SPM6545VT-330M-D

Part No SPM6545VT-330M-D
Manufacturer TDK Corporation
Catalog Fixed Inductors
Datasheet
SPM6545VT-330M-D Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series SPM-VT-D
Type Drum Core, Wirewound
Material - Core Metal Composite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 3.2A
Shielding Shielded
DC Resistance (DCR) 132mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.256" W (7.00mm x 6.50mm)
Height - Seated (Max) 0.177" (4.50mm)
Other Names 445-SPM6545VT-330M-DTR,445-SPM6545VT-330M-DDKR,445-SPM6545VT-330M-DCT
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272514-SPM6545VT-330M-D
Ultra Librarian 3D Model Ultra Librarian SPM6545VT-330M-D CAD Model

Description

The SPM6545VT-330M-D is a fixed inductor with a drum core and wirewound type from TDK Corporation.

  • Series: SPM-VT-D
  • Type: Drum Core, Wirewound, Shielded
  • Core Material: Metal Composite
  • Tolerance: ±20%
  • Standard Package: 1,000
  • DC Resistance (DCR): 132mOhm
  • Current Rating: 2.7A
  • Applications: Automotive, industrial, and consumer electronics
