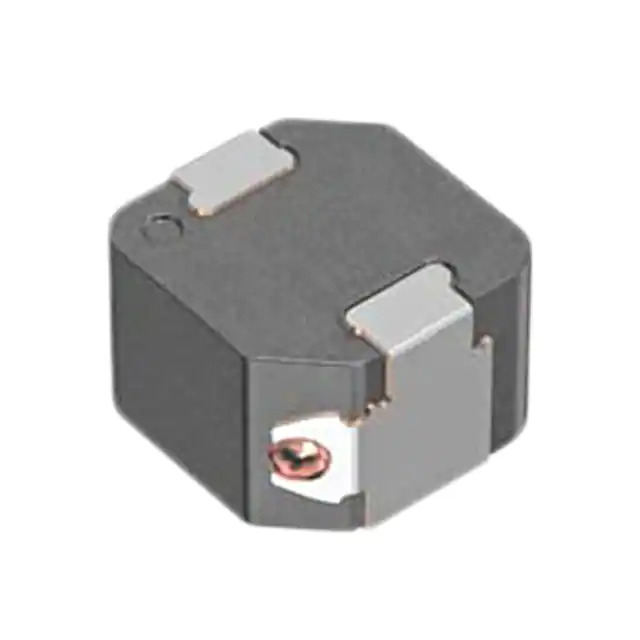

Same model may have multiple batches, images only for reference.
SPM6550T-2R2M TDK Corporation
Same model may have multiple batches, images only for reference.

SPM6550T-2R2M

Part No SPM6550T-2R2M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2UH 13.4A 10.7 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series SPM
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Metal
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 13.4 A
Current - Saturation (Isat) 7.9A
Shielding Shielded
DC Resistance (DCR) 10.7mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2-SMD, J-Lead
Size / Dimension 0.280" L x 0.256" W (7.10mm x 6.50mm)
Height - Seated (Max) 0.197" (5.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370530-SPM6550T-2R2M
Ultra Librarian 3D Model Ultra Librarian SPM6550T-2R2M CAD Model

Description

The SPM series from TDK Corporation offers the SPM6550T-2R2M fixed inductor. This surface mountable inductor features a drum core, wirewound construction, and a shielded design.

  • Mounting Type: Surface Mount
  • Core Material: Drum Core, Wirewound
  • Shielding: Shielded
  • Size: 0.280" L x 0.256" W (7.10mm x 6.50mm)
  • Height: 0.197" (5.00mm)
  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Current Rating: 13.4 A
  • DC Resistance: 10.7mOhm
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
  • REACH Status: Unaffected
