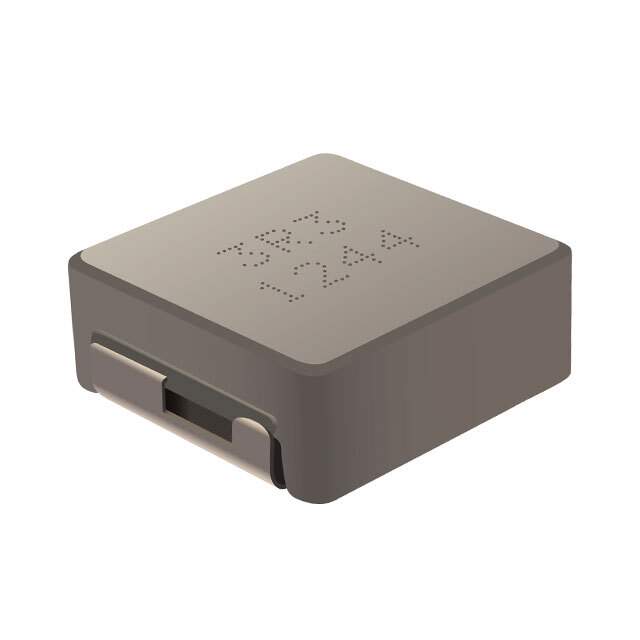

SRP1770TA-390M Real Image
Same model may have multiple batches, images only for reference.

SRP1770TA-390M

Part No SRP1770TA-390M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1770TA-390M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1770TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 39 µH
Tolerance ±20%
Current Rating (Amps) 9.2 A
Current - Saturation (Isat) 11A
Shielding Shielded
DC Resistance (DCR) 48mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 4MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.665" L x 0.665" W (16.90mm x 16.90mm)
Height - Seated (Max) 0.276" (7.00mm)
Base Product Number SRP1770TA
Other Names SRP1770TA-390MTR,SRP1770TA-390MDKR,SRP1770TA-390MCT
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274011-SRP1770TA-390M
Ultra Librarian 3D Model Ultra Librarian SRP1770TA-390M CAD Model

Description

The SRP1770TA-390M is a shielded drum core inductor from Bourns Inc.

  • Type: Wirewound
  • Inductance: 39 µH
  • Tolerance: ±20%
  • Rated Current: 9.2 A
  • DC Resistance (DCR): 48 mOhm max
  • Height: 0.276" (7.00 mm)
  • Dimension: 0.665" L x 0.665" W (16.90 mm x 16.90 mm)
  • Rating: AEC-Q200
  • Frequency Self-Resonant: 4 MHz
  • Package: Nonstandard
  • Standard Package: 200
  • Applications: Power supplies, DC-DC converters, and EMI filtering.
