Same model may have multiple batches, images only for reference.

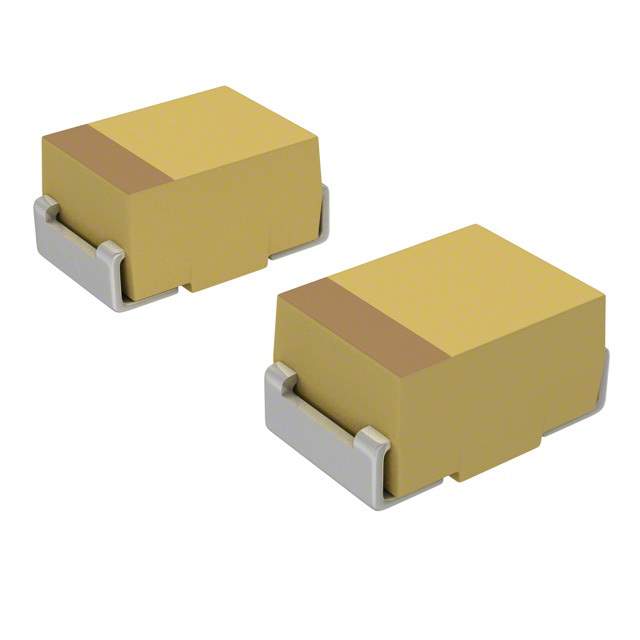

TLJN226M010R3800 Real Image
Same model may have multiple batches, images only for reference.

TLJN226M010R3800

Part No TLJN226M010R3800
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20% 10V 0805 / 22 µF Molded Tantalum Capacitors 10 V 0805 (2012 Metric) 3.8Ohm
Datasheet
TLJN226M010R3800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Molded
ESR (Equivalent Series Resistance) 3.8Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Size / Dimension 0.081" L x 0.051" W (2.05mm x 1.30mm)
Height - Seated (Max) 0.039" (1.00mm)
Manufacturer Size Code N
Features General Purpose
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Part Number 478-4694-1,478-4694-2,478-4694-6
Standard Package 3,000
Win Source Part Number 1331016-TLJN226M010R3800
Ultra Librarian 3D Model Ultra Librarian TLJN226M010R3800 CAD Model

Description

This tantalum capacitor is designed for general-purpose applications. Bold the product name (e.g., BAV99S,135 → (Product name is missing from original text) and manufacturer (e.g., Nexperia USA Inc. → (Manufacturer missing from original text).

  • Application: General-Purpose
  • Capacitance: 22 µF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 3.8Ohm
  • Mounting Type: Surface Mount
  • Package: Reel (3000 units)
  • Height Seated: 0.039" (1.00mm)
  • Operating Temperature: -55°C ~ 125°C
  • Dimension: 0.081" L x 0.051" W (2.05mm x 1.30mm)
  • Case/Package: 0805 (2012 Metric)
  • ECCN: EAR99
  • REACH: Unaffected
