Same model may have multiple batches, images only for reference.

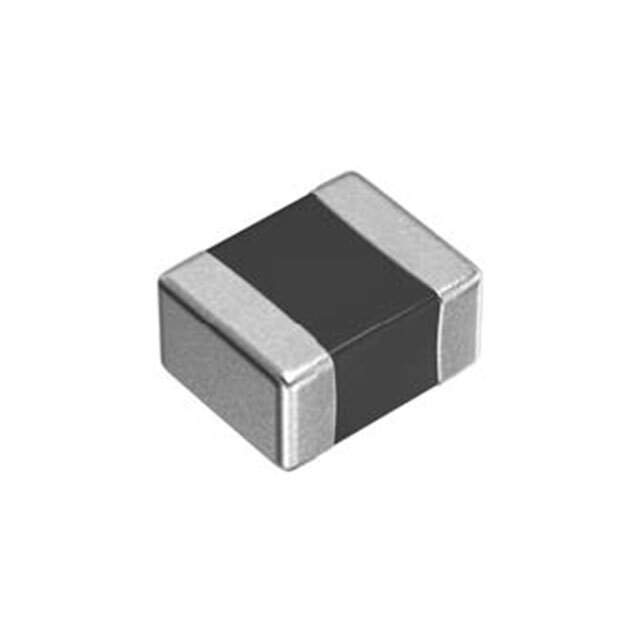

TFM201610ALMA1R0MTAA Real Image
Same model may have multiple batches, images only for reference.

TFM201610ALMA1R0MTAA

Part No TFM201610ALMA1R0MTAA
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 3.1A 60 MOHM SMD / 1 µH Shielded Thin Film Inductor 3.1 A 60mOhm Max 0806 (2016 Metric) Soft Termination
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer TDK Corporation
Packaging Reel - TR
Type Thin Film
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.1 A
Current - Saturation (Isat) 3.3A
Shielding Shielded
DC Resistance (DCR) 60mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 1 MHz
Features Soft Termination
Mounting Surface Mount
Case / Package 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 445-174574-6,445-174574-1,445-174574-2
Standard Package 3,000
Win Source Part Number 1327731-TFM201610ALMA1R0MTAA
Ultra Librarian 3D Model Ultra Librarian TFM201610ALMA1R0MTAA CAD Model

Description

The TDK Corporation TFM201610ALMA1R0MTAA is a thin film shielded fixed inductor with a soft termination feature.

  • Size: 0.079 inches in length and 0.063 inches in width (2.00mm x 1.60mm)
  • Maximum Height: 0.039 inches (1.00mm)
  • Inductance: 1 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 60mOhm Max
  • Current Rating: 3.1 A
  • AEC-Q200: Yes
  • Temperature Range: -55°C to 150°C
  • Supplied on: a reel
  • Standard Package: 3,000
  • Suitable for: surface mount applications
  • Shielding Feature: Yes
