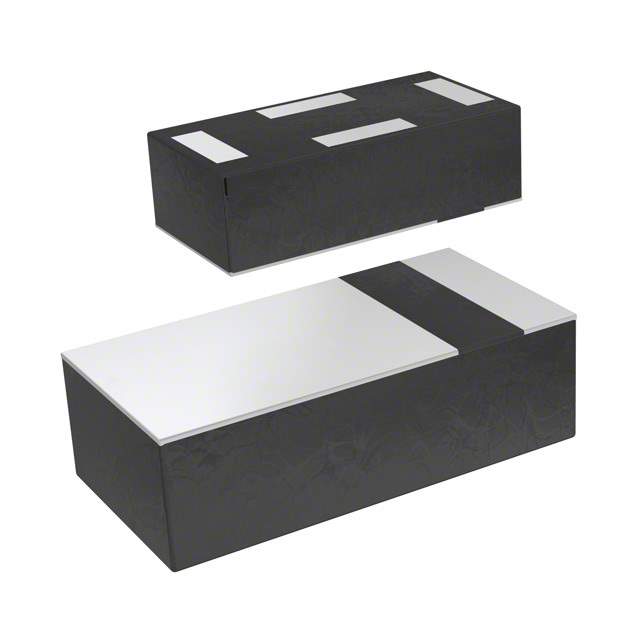

TFSD10055950-5102A2 Real Image
Same model may have multiple batches, images only for reference.

TFSD10055950-5102A2

Part No TFSD10055950-5102A2
Manufacturer TDK Corporation
Catalog RF Diplexers
Description THIN-FILM DIPLEXER 2.4/5GHZ WLAN
Datasheet
TFSD10055950-5102A2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Frequency Bands (Low / High) 2.4GHz to 2.5GHz / 4.9GHz to 6GHz
Low Band Attenuation (min / max dB) 20.00dB / 27.00dB
High Band Attenuation (min / max dB) 15.00dB / 31.00dB
Return Loss (Low Band / High Band) 21dB / 23dB
Mounting SMD (SMT)
Dimension 0402 (1005 Metric)
Win Source Part Number 1106871-TFSD10055950-5102A2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TFSD10055950-5102A2 CAD Model

Description

The TDK Corporation TFSD10055950-5102A2 is an obsolete (EOL) product categorized under RF/IF and RFID.

  • Category: RF/IF and RFID
  • Mounting: SMD (SMT)
  • Packaging: Reel
  • Frequency Range: 2.4GHz to 2.5GHz and 4.9GHz to 6GHz
  • Low Band Attenuation: 20.00dB to 27.00dB
  • High Band Attenuation: 15.00dB to 31.00dB
  • Return Loss Low Band: 21dB
  • Return Loss High Band: 23dB
  • Dimension: 0402 (1005 Metric)
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
