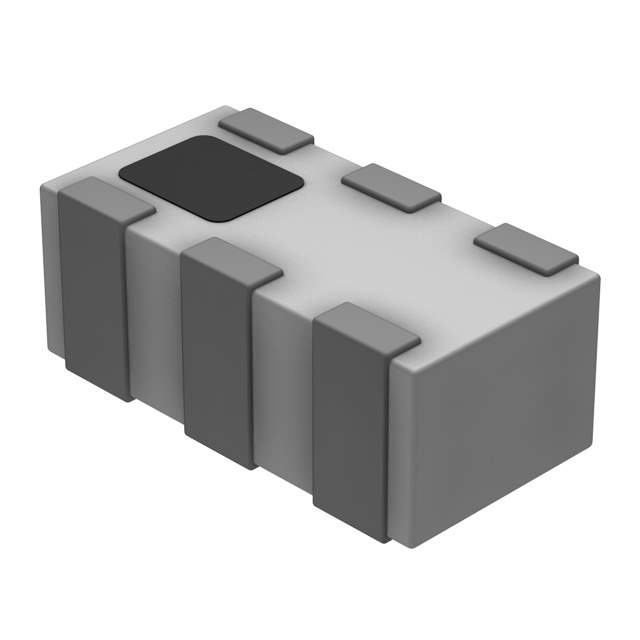

DPX162170DT-8022B1

Part No DPX162170DT-8022B1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER
Datasheet
DPX162170DT-8022B1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 704MHz to 960MHz / 1.71GHz to 2.17GHz
Low Band Attenuation (min / max dB) 15.00dB / 21.00dB
High Band Attenuation (min / max dB) 20.00dB / 26.00dB
Mounting SMD (SMT)
Dimension 0603 (1608 Metric), 6 PC Pad
Win Source Part Number 1033983-DPX162170DT-8022B1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DPX162170DT-8022B1 CAD Model

Description

The DPX162170DT-8022B1 is a bandpass filter designed by TDK Corporation.

  • Low Band Frequency Range: 704MHz to 960MHz
  • High Band Frequency Range: 1.71GHz to 2.17GHz
  • Low Band Attenuation: Minimum 15.00dB, Maximum 21.00dB
  • High Band Attenuation: Minimum 20.00dB, Maximum 26.00dB
  • Package: 0603 (1608 Metric), 6 PC pad
  • Mounting Type: SMD (SMT)
  • Supply and Demand Status: Sufficient
