Same model may have multiple batches, images only for reference.

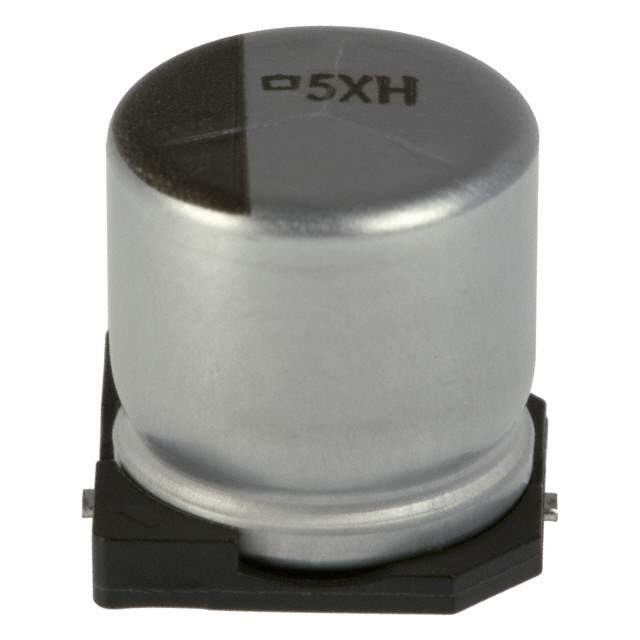

HHXA800ARA390MJA0G Real Image
Same model may have multiple batches, images only for reference.

HHXA800ARA390MJA0G

Part No HHXA800ARA390MJA0G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 39UF 80V SMD / 39 µF 80 V Aluminum - Polymer Capacitors Radial, Can - SMD 35mOhm 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series HXA
Package Tape & Reel
Product Status Not For New Designs
Type Hybrid
Capacitance 39 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 35mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 1.2 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.406" (10.30mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337494-HHXA800ARA390MJA0G
Ultra Librarian 3D Model Ultra Librarian HHXA800ARA390MJA0G CAD Model

Description

The HXA series hybrid capacitor from United Chemi-Con is a high-quality aluminum polymer capacitor that is perfect for automotive applications.

  • Series: HXA
  • Capacitor Type: Aluminum Polymer
  • Application: Automotive
  • Capacitance: 39 µF
  • Voltage Rating: 80 V
  • ESR: 35mOhm
  • Lifetime @ Temperature: 4000 hours @ 125°C
  • Packaging: Tape and Reel
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • AEC-Q200: Yes
