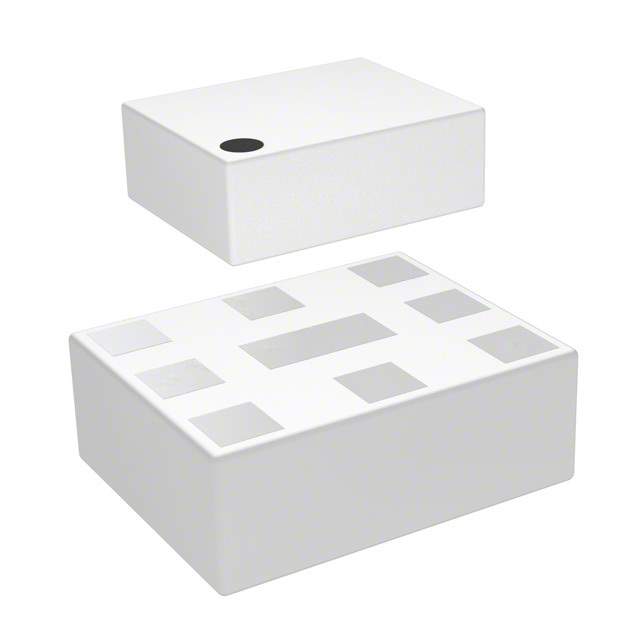

DPX252500DT-5217A1 Real Image
Same model may have multiple batches, images only for reference.

DPX252500DT-5217A1

Part No DPX252500DT-5217A1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER / RF Diplexer 2400MHz to 2500MHz/1572MHz to 1578MHz T/R
Datasheet
DPX252500DT-5217A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Series DPX
Packaging Reel package
Frequency Bands (Low / High) 1.57GHz ~ 1.58GHz / 2.4GHz ~ 2.5GHz
Low Band Attenuation (min / max dB) 25.00dB / 33.00dB
High Band Attenuation (min / max dB) 25.00dB / 54.00dB
Return Loss (Low Band / High Band) 23dB / 22dB
Mounting SMD
Package 1008 (2520 Metric), 8 PC Pad
Win Source Part Number 772819-DPX252500DT-5217A1
Popularity Medium
Supply and Demand Status Limited
Family Name DPX252500DT-5217A1
Introduction Date January 01, 2000
Halogen Free Compliant
Estimated EOL Date 2020
Ultra Librarian 3D Model Ultra Librarian DPX252500DT-5217A1 CAD Model

Description

The TDK Corporation DPX252500DT-5217A1 is an RF/IF and RFID component with a frequency range of 1.57GHz ~ 1.58GHz for the low band and 2.4GHz ~ 2.5GHz for the high band.

  • Low Band Attenuation: 25.00dB to 33.00dB
  • High Band Attenuation: 25.00dB to 54.00dB
  • Low Band Return Loss: 23dB
  • High Band Return Loss: 22dB
  • Package: 1008 (2520 Metric), 8 PC Pad SMD
  • Compliance: Halogen-free
  • Applications: Wireless communication systems, Bluetooth devices
