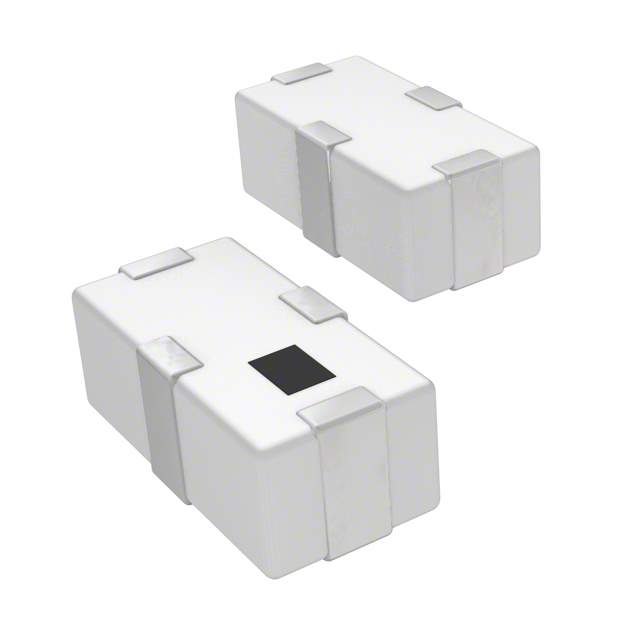

DPX165850DT-8017A1 Real Image
Same model may have multiple batches, images only for reference.

DPX165850DT-8017A1

Part No DPX165850DT-8017A1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description DIPLEXER 2.4GHZ, 5GHZ WLAN 1608
Datasheet
DPX165850DT-8017A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 2.4GHz to 2.5GHz / 4.9GHz to 5.85GHz
Low Band Attenuation (min / max dB) 20.00dB / -
High Band Attenuation (min / max dB) 20.00dB / -
Mounting SMD (SMT)
Dimension 0603 (1608 Metric), 4 PC Pad
Win Source Part Number 1033984-DPX165850DT-8017A1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian DPX165850DT-8017A1 CAD Model

Description

The TDK Corporation DPX165850DT-8017A1 is a high-performance SMD (SMT) mounted component designed for use in RF/IF and RFID applications.

  • Mounting Type: SMD (SMT)
  • Packaging: Reel - TR
  • Frequency Band: 2.4GHz to 2.5GHz / 4.9GHz to 5.85GHz
  • Low Band Attenuation (min / max dB): 20.00dB / -
  • High Band Attenuation (min / max dB): 20.00dB / -
  • Return Loss (low band / high band): -
  • Supply and Demand: Sufficient
  • Dimension: 0603 (1608 Metric), 4 PC Pad
