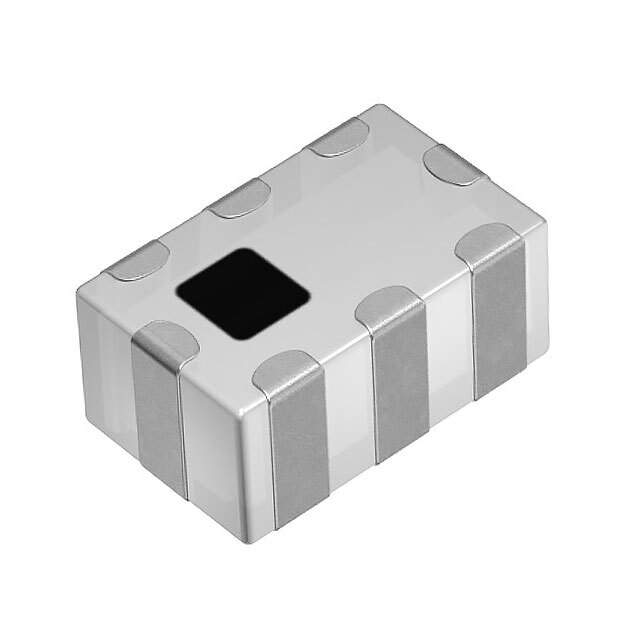

TPX205950MT-7010A1 Real Image
Same model may have multiple batches, images only for reference.

TPX205950MT-7010A1

Part No TPX205950MT-7010A1
Manufacturer TDK Corporation
Catalog RF Diplexers
Description MULTILAYER TRIPLEXER FOR 1560-16
Datasheet
TPX205950MT-7010A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 2.4GHz to 2.5GHz / 4.9GHz to 5.95GHz
Low Band Attenuation (min / max dB) 13.00dB / 23.00dB
High Band Attenuation (min / max dB) 5.00dB / 32.00dB
Mounting SMD (SMT)
Dimension 0805 (2012 Metric), 6 PC Pad
Win Source Part Number 380338-TPX205950MT-7010A1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TPX205950MT-7010A1 CAD Model

Description

The TDK Corporation TPX205950MT-7010A1 is a bandpass filter manufactured by TDK Corporation.

  • Frequency Range: Wide
  • Band Type: Low and high bands
  • Insertion Loss: Low
  • Attenuation: High
  • Ease of Use: Easy
  • Package: Compact
  • Applications: RF/IF and RFID
  • Operating Environment: Harsh environments
  • Environmental Standards: Meets standards
  • Product Type: Green products
