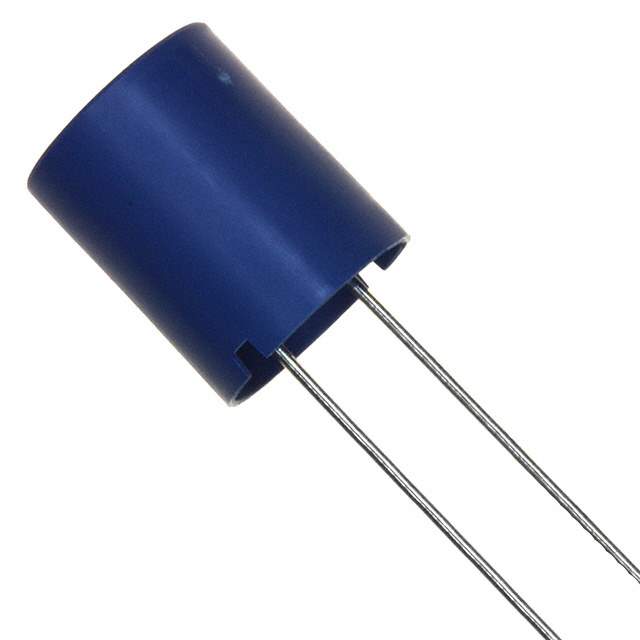

TSL1315RA-221K1R7-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-221K1R7-PF

Part No TSL1315RA-221K1R7-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 220UH 1.7A 200 MOHM TH
Datasheet
TSL1315RA-221K1R7-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 220μH
Tolerance ±10%
Current Rating 1.7A
Current - Saturation 2.7A
DC Resistance (DCR) 200 mOhm Max
Q @ Freq 40 @ 796kHz
Frequency - Self Resonant 2.2MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 035328-TSL1315RA-221K1R7-PF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-221K1R7-PF CAD Model

Description

The TDK Corporation 035328-TSL1315RA-221K1R7-PF inductor is a through-hole mounting inductor with a current rating of 1.7A and an inductance of 220μH.

  • Mounting: through-hole
  • Current Rating: 1.7A
  • Inductance: 220μH
  • Height: 0.669" (17.00mm)
  • Tolerance: ±10%
  • Current-Saturation: 2.7A
  • Q @ Freq: 40 @ 796kHz
  • Frequency-Self Resonant: 2.2MHz
  • Frequency-Test: 1kHz
  • DC Resistance (DCR): 200 mOhm Max
  • Temperature Range: -20°C to 85°C
  • Category: Inductors, Coils, Chokes
  • Popularity: medium popularity
  • Status: obsolete (EOL)
  • Supply and Demand Status: limited
