Same model may have multiple batches, images only for reference.

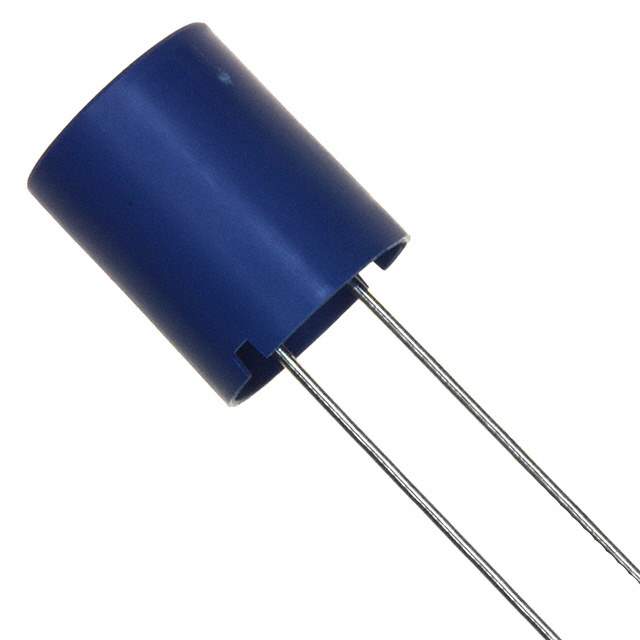

TSL1315RA-471K1R1-PF Real Image
Same model may have multiple batches, images only for reference.

TSL1315RA-471K1R1-PF

Part No TSL1315RA-471K1R1-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 470UH 1.1A 430 MOHM TH
Datasheet
TSL1315RA-471K1R1-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Inductance 470μH
Tolerance ±10%
Current Rating 1.1A
Current - Saturation 1.8A
DC Resistance (DCR) 430 mOhm Max
Q @ Freq 30 @ 796kHz
Frequency - Self Resonant 1.5MHz
Temperature Range - Operating -20°C to 85°C
Frequency - Test 1kHz
Mounting Through Hole
Height - Seated (Max) 0.669" (17.00mm)
Win Source Part Number 122972-TSL1315RA-471K1R1-PF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSL1315RA-471K1R1-PF CAD Model

Description

The TDK Corporation TSL1315RA-471K1R1-PF is an obsolete (EOL) inductor with a current rating of 1.1A and an inductance of 470µH.

  • Status: obsolete (EOL)
  • Current Rating: 1.1A
  • Inductance: 470µH
  • Height: 17.00mm
  • Mounting: through-hole
  • Tolerance: ±10%
  • Current Saturation: 1.8A
  • Q @ Freq: 30 @ 796kHz
  • Frequency Self-Resonant: 1.5MHz
  • Frequency Test: 1kHz
  • DC Resistance (DCR): 430 mOhm Max
  • Temperature Range: -20°C to 85°C
  • Use: inductors, coils, and chokes
