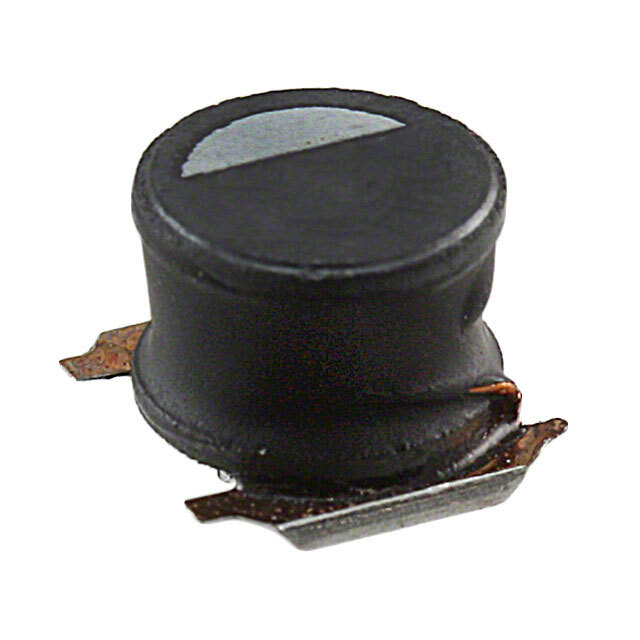

VLC6045T-220M TDK Corporation VLC6045T-220M Real Image VLC6045T-220M real image 2 VLC6045T-220M label picture
Same model may have multiple batches, images only for reference.
VLC6045T-220M TDK Corporation VLC6045T-220M Real Image VLC6045T-220M real image 2 VLC6045T-220M label picture
VLC6045T-220M TDK Corporation VLC6045T-220M Real Image VLC6045T-220M real image 2 VLC6045T-220M label picture
Same model may have multiple batches, images only for reference.

VLC6045T-220M

Part No VLC6045T-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 22uH 20% 100KHz 1.7A 0.13Ohm DCR / FIXED IND 22UH 1.7A 130 MOHM SMD
Datasheet
VLC6045T-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 22μH
Tolerance ±20%
Current Rating 1.7A
Current - Saturation 1.7A
DC Resistance (DCR) 130 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 093446-VLC6045T-220M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name VLC
Introduction Date May 20, 2002
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VLC6045T-220M CAD Model

Description

The TDK Corporation VLC6045T-220M wirewound inductor is a surface-mount device designed for use in a variety of electronic devices.

  • Inductance: 22μH
  • Current Rating: 1.7A
  • Tolerance: ±20%
  • Height: 0.177" (4.50mm)
  • Current-Saturation: 1.7A
  • DC Resistance (DCR): 130 mOhm Max
  • Status: Obsolete (EOL)
  • Popularity: High popularity
