Same model may have multiple batches, images only for reference.

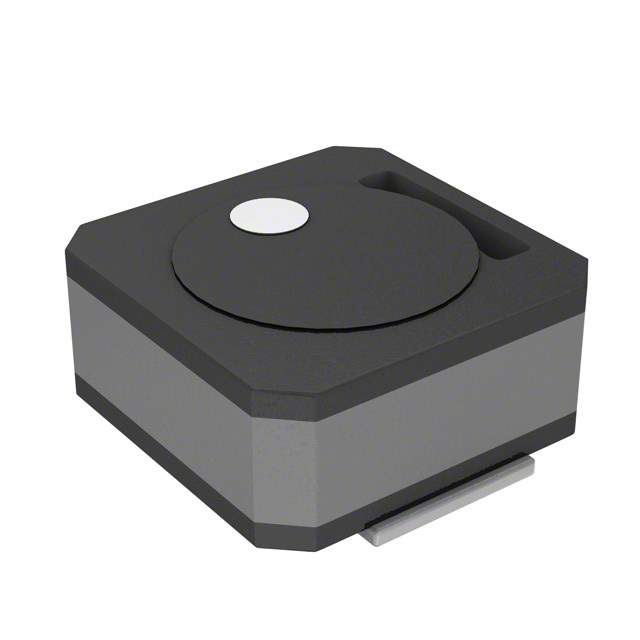

VLCF4020T-270MR48 Real Image
Same model may have multiple batches, images only for reference.

VLCF4020T-270MR48

Part No VLCF4020T-270MR48
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 27UH 480MA 496 MOHM
Datasheet
VLCF4020T-270MR48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 27μH
Tolerance ±20%
Current Rating 480mA
Current - Saturation 480mA
DC Resistance (DCR) 496 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 108082-VLCF4020T-270MR48
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VLCF4020T-270MR48 CAD Model

Description

The TDK Corporation VLCF4020T-270MR48 is a wirewound inductor that is suitable for a variety of electronic projects.

  • Current Rating: 480mA
  • Inductance: 27μH
  • Height: 0.079" (2.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Material: Ferrite
  • Current - Saturation: 480mA
  • Frequency - Test: 100kHz
  • DC Resistance (DCR): 496 mOhm max
  • Category: Inductors, coils, and chokes
  • Temperature Range: -40°C to 105°C
  • Packaging: Reel-TR format
  • Popularity: Medium popularity
  • Supply and Demand Status: Limited
