Same model may have multiple batches, images only for reference.

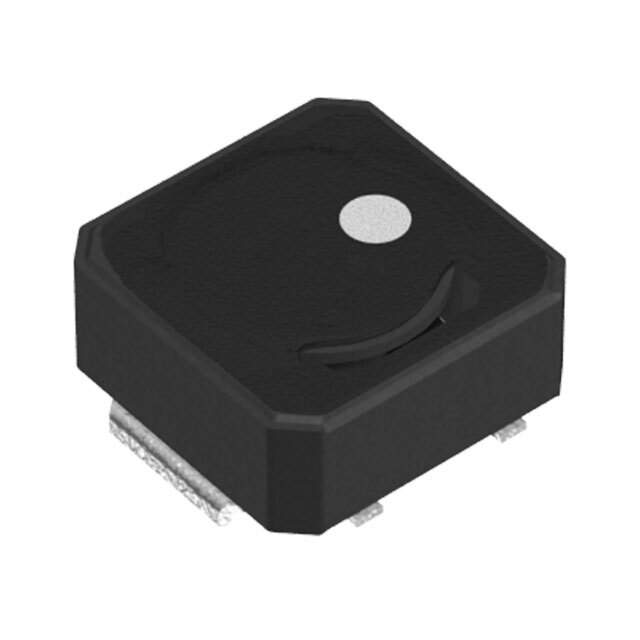

VLCF5020T-3R3N1R6 Real Image
Same model may have multiple batches, images only for reference.

VLCF5020T-3R3N1R6

Part No VLCF5020T-3R3N1R6
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.6A 83 MOHM SMD
Datasheet
VLCF5020T-3R3N1R6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±30%
Current Rating 1.6A
Current - Saturation 1.6A
DC Resistance (DCR) 83 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 1117114-VLCF5020T-3R3N1R6
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLCF5020T-3R3N1R6 CAD Model

Description

The TDK Corporation VLCF5020T-3R3N1R6 wirewound inductor is a high-quality component for use in a variety of electronic applications.

  • Current Rating: 1.6A
  • Inductance: 3.3μH
  • Height (Seated): 0.079" (2.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±30%
  • Material: ferrite
  • Current Saturation: 1.6A
  • Frequency of Self-Resonance: not applicable
  • DC Resistance (DCR): 83 mOhm Max
  • Temperature Range: -40°C to 105°C
  • Popularity: medium
  • Supply and Demand: balanced
