Same model may have multiple batches, images only for reference.

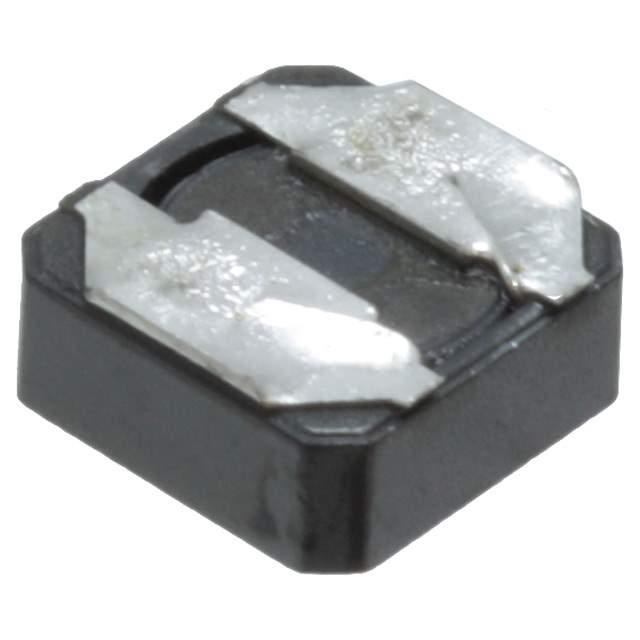

VLCF5024T-1R8N1R8-2 Real Image
Same model may have multiple batches, images only for reference.

VLCF5024T-1R8N1R8-2

Part No VLCF5024T-1R8N1R8-2
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors for Power Circuits Wound Ferrite
Datasheet
VLCF5024T-1R8N1R8-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLCF
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 1.8μH
Tolerance ±30%
Current Rating 1.86A
Current - Saturation 1.86A
Shielding Shielded
DC Resistance (DCR) 26 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Maximum) 0.094" (2.40mm)
Win Source Part Number 1279357-VLCF5024T-1R8N1R8-2
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name VLCF
Introduction Date January 01, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VLCF5024T-1R8N1R8-2 CAD Model

Description

The TDK Corporation VLCF series wirewound inductor is a high-quality component used in electronic circuits.

  • Inductance: 1.8μH
  • Current Rating: 1.86A
  • Tolerance: ±30%
  • Applications: Power supplies, lighting, audio, and telecommunications
  • Package Contains: One piece
  • Package: Reel
  • Package Size: Non-standard
  • Operating Temperature: -40°C to 105°C
