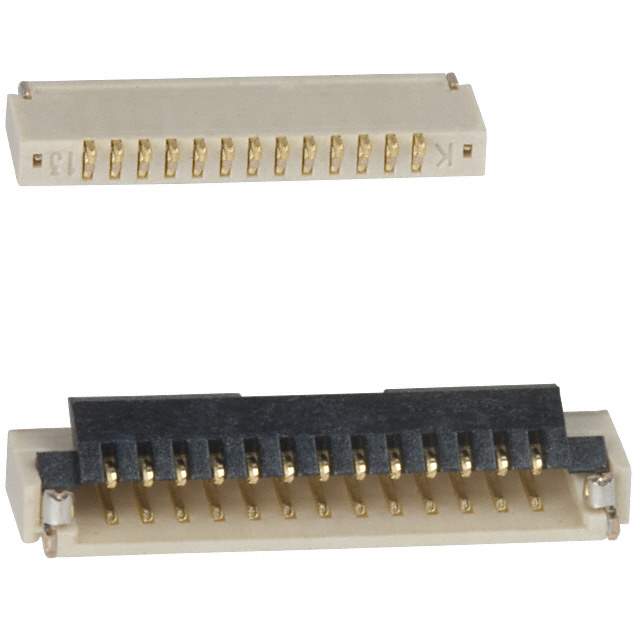

FH19SC-13S-0.5SH(09)

Part No FH19SC-13S-0.5SH(09)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 13POS 0.50MM R/A / 13 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH19SC
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 13
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 580-0518-8-09,FH19SC-13S-0.5SH(09)-ND,H125829CT,H125829DKR,H125829TR
Standard Package 5,000
Win Source Part Number 1059110-FH19SC-13S-0.5SH(09)
Ultra Librarian 3D Model Ultra Librarian FH19SC-13S-0.5SH(09) CAD Model

Description

The FH19SC-13S-0.5SH(09) is an electronic component categorized as connectors and interconnects.

  • Product: FH19SC-13S-0.5SH(09)
  • Manufacturer: Hirose Electric Co Ltd
  • Category: Connectors and Interconnects
  • Fake Product Threat: 72 percent
  • Supply and Demand Status: Obsolete
  • Pitch: 0.020 inches
  • Termination: Solder
  • Contact Finish: Gold
  • Flat Flex Type: FFC and FPC
  • Thickness: 0.30mm
  • Mounting: Surface mount and right angle mounting
  • Temperature Range: -55 degrees Celsius to 85 degrees Celsius
