Same model may have multiple batches, images only for reference.

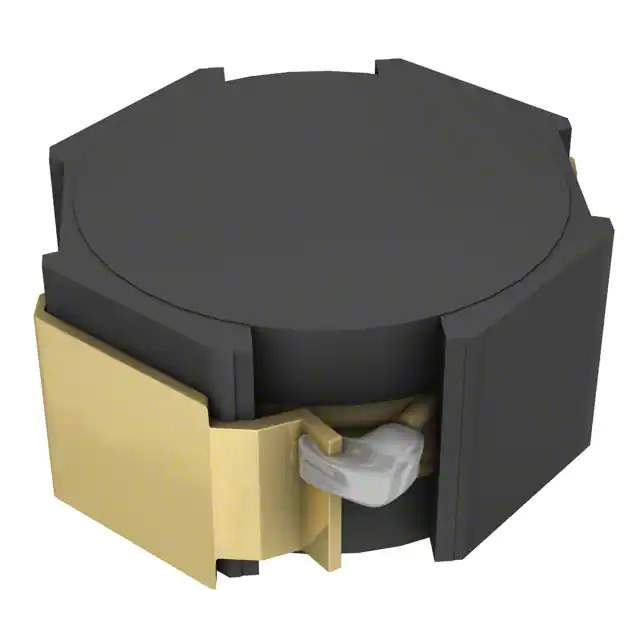

VLF10045T-1R0N100 Real Image
Same model may have multiple batches, images only for reference.

VLF10045T-1R0N100

Part No VLF10045T-1R0N100
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1UH 10A 5.5 MOHM SMD / 1 μH Shielded Drum Core, Wirewound Inductor 10 A 5.5mOhm Max Nonstandard
Datasheet
VLF10045T-1R0N100 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series VLF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1 µH
Tolerance ±30%
Current Rating (Amps) 10 A
Current - Saturation (Isat) 13.5A
Shielding Shielded
DC Resistance (DCR) 5.5mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.382" W (10.00mm x 9.70mm)
Height - Seated (Max) 0.177" (4.50mm)
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 902612-VLF10045T-1R0N100
Ultra Librarian 3D Model Ultra Librarian VLF10045T-1R0N100 CAD Model

Description

The 902612-VLF10045T-1R0N100 is a fixed inductor from TDK Corporation.

  • Series: VLF
  • Features: drum core, wirewound design
  • Inductance: 1 μH
  • Tolerance: ±30%
  • Size (L x W): 0.394" L x 0.382" W (10.00mm x 9.70mm)
  • Height: 0.177" (4.50mm)
  • Package: shielded
  • Installation: surface mount
  • Package: tape & reel
  • Standard Package Quantity: 500 pcs
  • DC Resistance: 5.5mOhm max
  • Current Rating: 10 A
  • Operating Temperature Range: -40°C to 105°C
  • Status: obsolete
