Same model may have multiple batches, images only for reference.

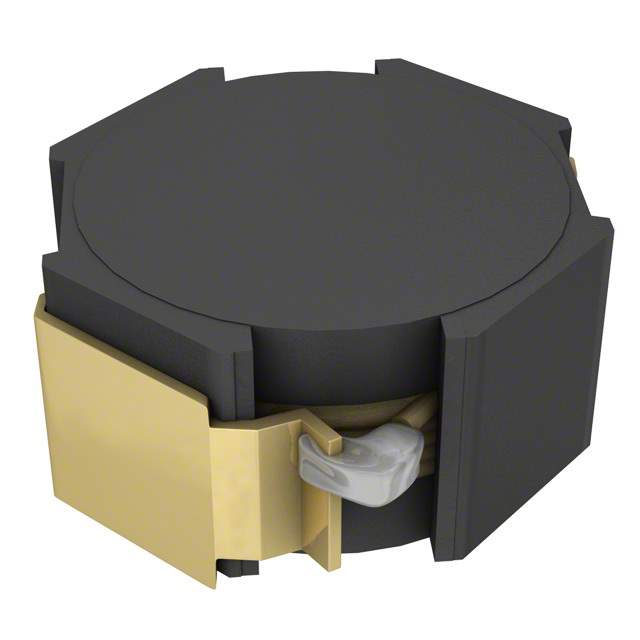

VLF10045T-221MR90 Real Image
Same model may have multiple batches, images only for reference.

VLF10045T-221MR90

Part No VLF10045T-221MR90
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded)
Datasheet
VLF10045T-221MR90 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±20%
Current Rating 900mA
Current - Saturation 900mA
Shielding Shielded
DC Resistance (DCR) 499 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.394" L x 0.382" W (10.00mm x 9.70mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 1279363-VLF10045T-221MR90
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Limited
Family Name VLF
Introduction Date May 20, 2002
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLF10045T-221MR90 CAD Model

Description

The VLF10045T-221MR90 is a wirewound inductor designed for use in circuits requiring inductance.

  • Shielding: Shielded
  • Current Rating: 900mA
  • Saturation Current: 900mA
  • Inductance: 220µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 499 mOhm Max
  • Test Frequency: 100kHz
  • Operating Temperature: -40°C to 105°C
  • Mounting: SMT
  • Packaging: Reel (TR)
  • Package Size: 0.394" L x 0.382" W (10.00mm x 9.70mm)
  • Height: 0.177" (4.50mm) Seated
  • HTSUS Code: 8504.40.9580
  • Product Status: Obsolete
