Same model may have multiple batches, images only for reference.

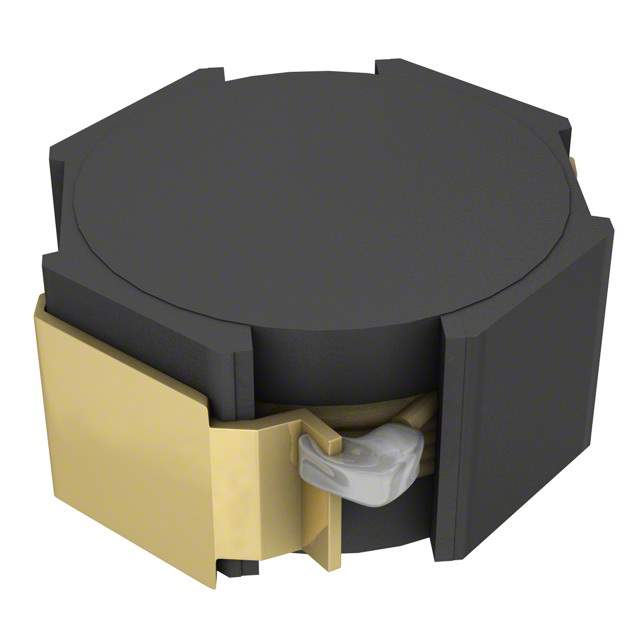

VLF10045T-3R3N6R9 Real Image
Same model may have multiple batches, images only for reference.

VLF10045T-3R3N6R9

Part No VLF10045T-3R3N6R9
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description SMD Inductors(Coils) For Power Line(Wound, Magnetic Shielded)
Datasheet
VLF10045T-3R3N6R9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±30%
Current Rating 6.9A
Current - Saturation 7.5A
Shielding Shielded
DC Resistance (DCR) 11.6 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.394" L x 0.382" W (10.00mm x 9.70mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 1279365-VLF10045T-3R3N6R9
Manufacturer Homepage www.tdk.com
Popularity Medium
Supply and Demand Status Sufficient
Family Name VLF
Introduction Date May 20, 2002
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLF10045T-3R3N6R9 CAD Model

Description

The TDK Corporation VLF10045T-3R3N6R9 is a wirewound inductor that is designed to be used in various applications such as Inductors, Coils, Chokes.

  • Inductance: 3.3μH.
  • Current Rating: 6.9A.
  • Structure: Shielded.
  • Mounting: SMD.
  • Tolerance: ±30%.
  • DC Resistance (DCR): 11.6 mOhm Max.
  • Height: 0.177" (4.50mm).
  • Size: 0.394" L x 0.382" W (10.00mm x 9.70mm).
  • Operating Temperature Range: -40°C ~ 105°C.
  • Supply and Demand: Sufficient.
