Same model may have multiple batches, images only for reference.

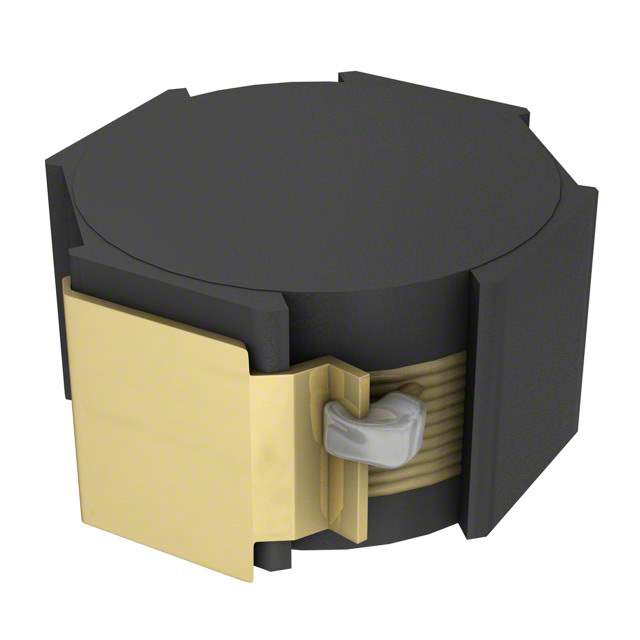

VLF12060T-220M4R1 Real Image
Same model may have multiple batches, images only for reference.

VLF12060T-220M4R1

Part No VLF12060T-220M4R1
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 4.1A 36 MOHM SMD
Datasheet
VLF12060T-220M4R1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 4.1A
Current - Saturation 4.1A
DC Resistance (DCR) 36 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.236" (6.00mm)
Win Source Part Number 1117131-VLF12060T-220M4R1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLF12060T-220M4R1 CAD Model

Description

The TDK Corporation VLF12060T-220M4R1 is a wirewound inductor that is designed for use in inductor, coil, choke applications.

  • Inductance: 22μH
  • Current Rating: 4.1A
  • DC Resistance: 36 mOhm max
  • Operating Temperature Range: -40°C to 105°C
  • Mounting: SMD (SMT)
  • Height: 0.236" (6.00mm)
