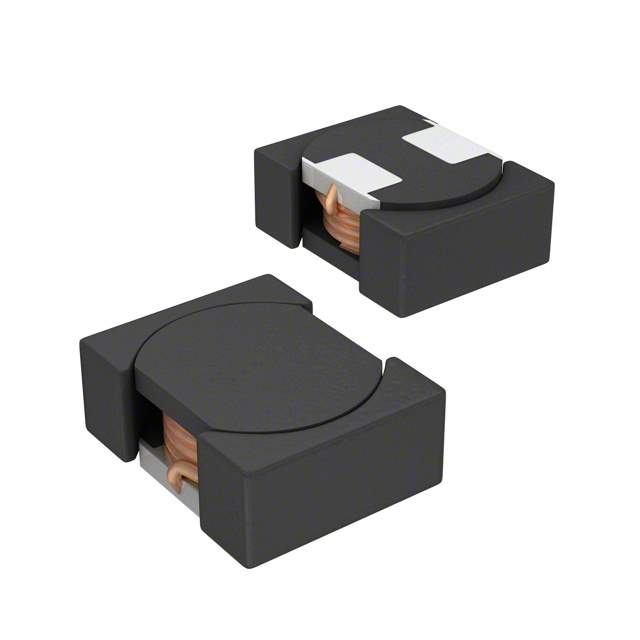

VLF252010MT-100M Real Image
Same model may have multiple batches, images only for reference.

VLF252010MT-100M

Part No VLF252010MT-100M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 660MA 590 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating (Amps) 660mA
Current - Saturation 390mA
Shielding Shielded
DC Resistance (DCR) 590mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807186-VLF252010MT-100M
Ultra Librarian 3D Model Ultra Librarian VLF252010MT-100M CAD Model

Description

TDK Corporation presents the VLF252010MT-100M, a wirewound product with a shielded feature.

  • Inductance: 10μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Current-Saturation: 390mA
  • DC Resistance (DCR): 590mOhm Max
  • Mounting: SMD
  • Obsolete: Yes (end of life)
  • Popularity: Medium
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (unlimited)
  • Current Rating (Amps): 660mA
  • Inductance Frequency-Test: 1MHz
