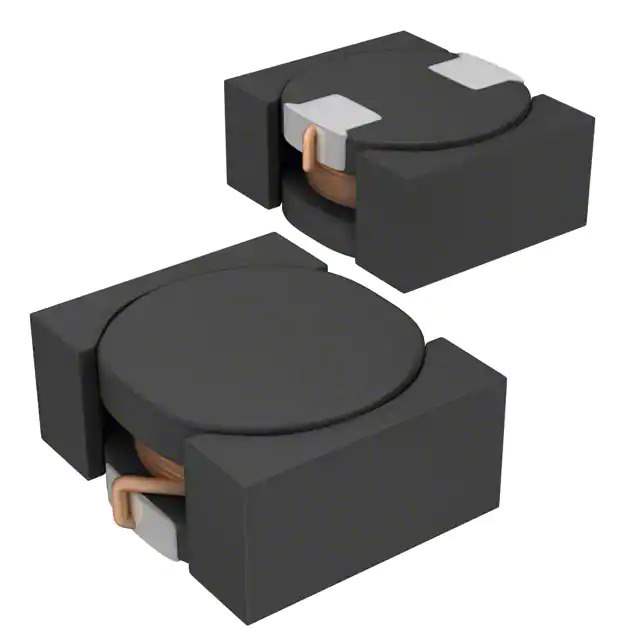

VLF302515MT-100M Real Image
Same model may have multiple batches, images only for reference.

VLF302515MT-100M

Part No VLF302515MT-100M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 1.37A 180MOHM SMD
Datasheet
VLF302515MT-100M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr TDK Corporation
Series VLF-MT
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.37 A
Current - Saturation (Isat) 710mA
Shielding Shielded
DC Resistance (DCR) 180mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.118" L x 0.098" W (3.00mm x 2.50mm)
Height - Seated (Max) 0.059" (1.50mm)
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 846040-VLF302515MT-100M
Ultra Librarian 3D Model Ultra Librarian VLF302515MT-100M CAD Model

Description

The VLF-MT series from TDK Corporation is a range of fixed inductors with a drum core, wirewound construction.

  • Series: VLF-MT
  • Construction: Drum Core, Wirewound
  • Shielding: Shielded
  • Size: 0.118" L x 0.098" W (3.00mm x 2.50mm)
  • Maximum Height: 0.059" (1.50mm)
  • Inductance: 10μH
  • Tolerance: ±20%
  • DC Resistance: 180mOhm
  • Current Rating: 1.37A
  • Mounting Type: Surface Mountable
  • Operating Temperature: -40°C to 105°C
  • REACH: Unaffected
  • Package: Nonstandard
  • Status: Obsolete
