Same model may have multiple batches, images only for reference.

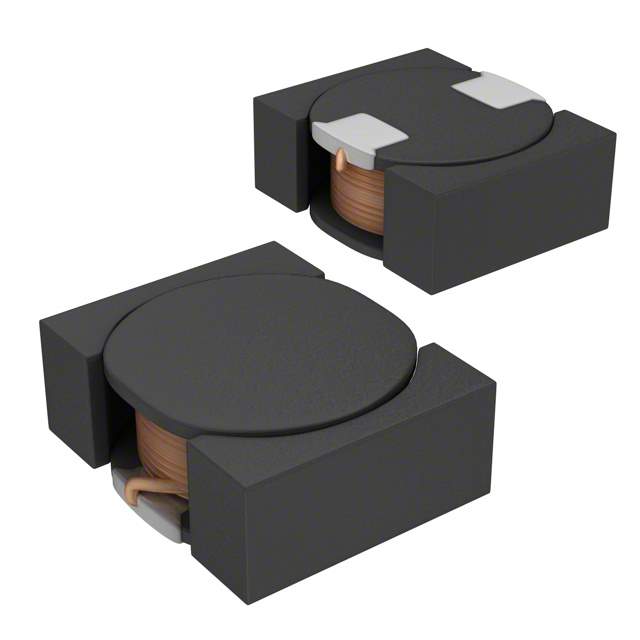

VLF403215MT-100M Real Image
Same model may have multiple batches, images only for reference.

VLF403215MT-100M

Part No VLF403215MT-100M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 10UH 1.44A 180 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating (Amps) 1.44A
Current - Saturation 1A
Shielding Shielded
DC Resistance (DCR) 180mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807386-VLF403215MT-100M
Ultra Librarian 3D Model Ultra Librarian VLF403215MT-100M CAD Model

Description

This wirewound inductor is shielded with a ferrite core material. It is supplied by TDK Corporation.

  • Inductance: 10μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 180mOhm Max
  • Height: 0.059" (1.50mm)
  • Dimension: 0.157" L x 0.126" W (4.00mm x 3.20mm)
  • Mounting: SMD
  • Package: Reel
  • Current Rating: 1.44A
  • Temperature Range: -40°C to 105°C
  • Status: Obsolete (End Of Life)
