Same model may have multiple batches, images only for reference.

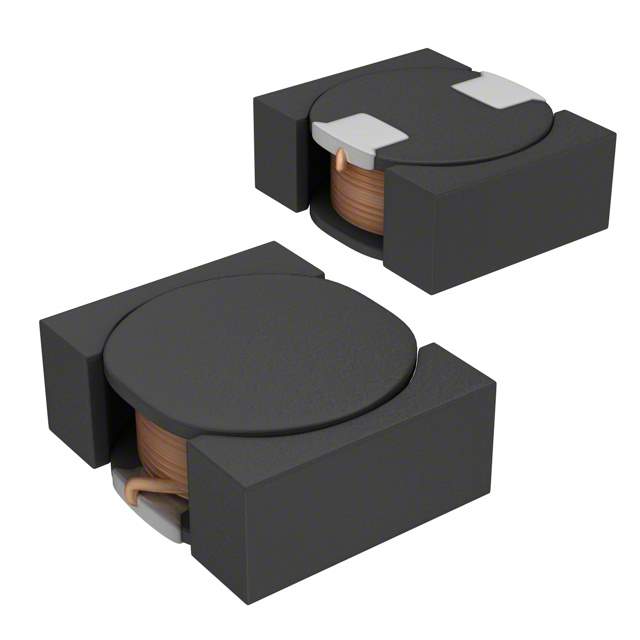

VLF403215MT-3R3M Real Image
Same model may have multiple batches, images only for reference.

VLF403215MT-3R3M

Part No VLF403215MT-3R3M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 3.3UH 2.65A 62 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating (Amps) 2.65A
Current - Saturation 1.65A
Shielding Shielded
DC Resistance (DCR) 62mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806846-VLF403215MT-3R3M
Ultra Librarian 3D Model Ultra Librarian VLF403215MT-3R3M CAD Model

Description

{"ProductId":745427,"FormattedDescription":"

The TDK Corporation 806846-VLF403215MT-3R3M is a wirewound type inductor that is shielded.

  • Inductance: 3.3µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Maximum DC Resistance (DCR): 62mOhm
  • Mounting: SMD
  • Packaging: Reel
  • Operating Temperature: -40°C to 105°C
  • Manufacturer Package: Nonstandard
  • Height: 0.059" (1.50mm)
  • Dimensions: 0.157" L x 0.126" W (4.00mm x 3.20mm)
  • Current Rating: 2.65A
  • Inductance Frequency-test: 1MHz
  • Application: Shielding
"}
