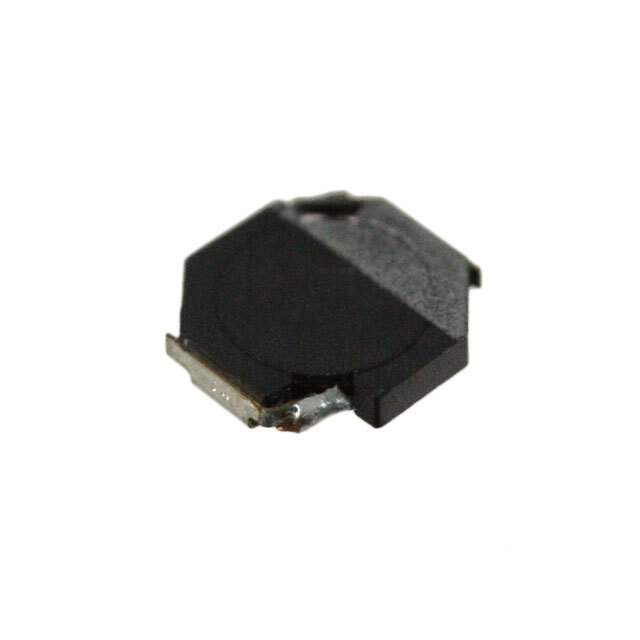

VLF5010ST-4R7M1R3 Real Image
Same model may have multiple batches, images only for reference.

VLF5010ST-4R7M1R3

Part No VLF5010ST-4R7M1R3
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.3A 180MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 1.3 A 180mOhm Max Nonstandard
Datasheet
VLF5010ST-4R7M1R3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TDK Corporation
Series VLF
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 1.4A
Shielding Shielded
DC Resistance (DCR) 180mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.185" L x 0.177" W (4.70mm x 4.50mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names VLF5010ST4R7M1R3,-VLF5010ST,445-4228-6,445-4228-1,445-4228-2
Standard Package 1,000
Win Source Part Number 1103921-VLF5010ST-4R7M1R3
Ultra Librarian 3D Model Ultra Librarian VLF5010ST-4R7M1R3 CAD Model

Description

The TDK Corporation VLF5010ST-4R7M1R3 is a drum core, wirewound inductor that is shielded and has an inductance of 4.7µH.

  • Height: 1.00mm
  • Width: 4.70mm
  • Type: SMD (SMT) inductor
  • Package/Case: Nonstandard
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 105°C
  • Current Rating: 1.3A
  • DC Resistance: 180mOhm max
  • Status: Obsolete and has been replaced by alternative parts such as SRN3015-4R7M and DFE252012F-4R7M=P2.
