Same model may have multiple batches, images only for reference.

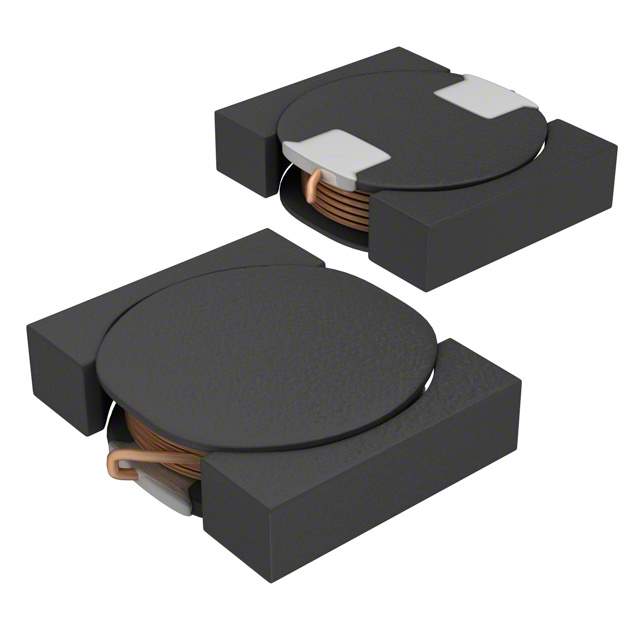

VLF504012MT-220M Real Image
Same model may have multiple batches, images only for reference.

VLF504012MT-220M

Part No VLF504012MT-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 840MA 580 MOHM / Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 840mA
Current - Saturation 800mA
Shielding Shielded
DC Resistance (DCR) 580mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.197" L x 0.157" W (5.00mm x 4.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808551-VLF504012MT-220M
Ultra Librarian 3D Model Ultra Librarian VLF504012MT-220M CAD Model

Description

The TDK Corporation VLF504012MT-220M is a shielded, wirewound type inductor from TDK Corporation.

  • Inductance: 22μH
  • DC Resistance (DCR): 580mOhm Max
  • Current Rating (Amps): 840mA
  • Manufacturer Package: nonstandard
  • Height-Seated (Maximum): 0.047" (1.20mm)
  • Mfr: TDK Corporation
  • Other Names: 445-172935-6, 445-172935-1, 445-172935-2
  • Part Status: obsolete (end of life)
  • Popularity: medium
  • Supply and Demand Status: balance
