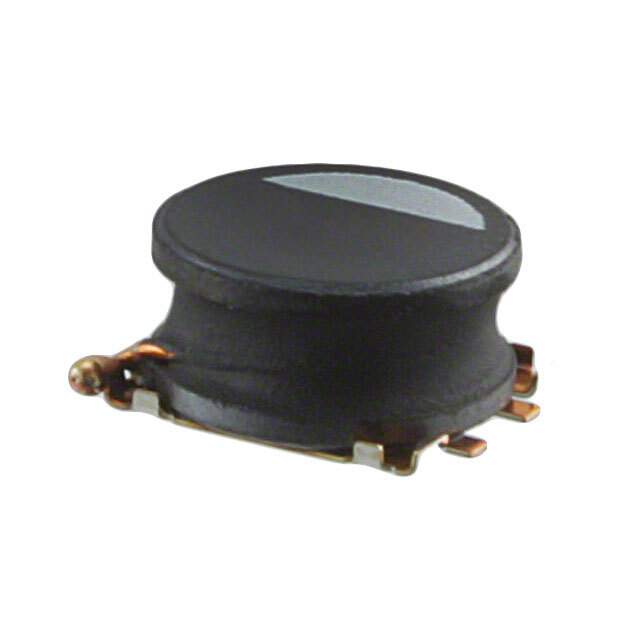

VLP8040T-220M Real Image
Same model may have multiple batches, images only for reference.

VLP8040T-220M

Part No VLP8040T-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 22UH 2.2A 75 MOHM SMD
Datasheet
VLP8040T-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 2.2A
Current - Saturation 2.2A
DC Resistance (DCR) 75 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 036342-VLP8040T-220M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VLP8040T-220M CAD Model

Description

The TDK Corporation VLP8040T-220M is a medium popularity electronic component.

  • Type: Wirewound inductor
  • Inductance: 22μH
  • Current Rating: 2.2A
  • Height: 0.157" (4.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 75 mOhm Max
  • Operating Temperature: -40°C to 105°C
  • Applications: Inductors, coils, and chokes
